Vehicle Info NeededENERGY SUSPENSIONPART NUMBER: 355-9-9483G
Link-Flange Type Bushing Kit Outer tube ID: 1.500"
$2532
1 left in stock
Ships Today
Lowest Price GuaranteeTube I.D. 1.50"

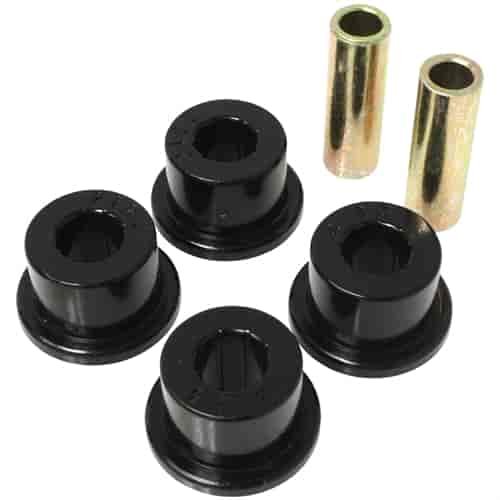

- Link-Flange Type Bushing Kit
- Outer tube ID: 1.500"
- Bolt Diameter: 1/2"
- Black
- Universal
Outer Tube: - ID: 1.500"
- Length: 1.960"
- Minimum Wall Thickness: 0.250"
Bushing: - OD: 1.510"
- ID: 0.750"
- Barrel Length: 0.950"
- Flange OD: 1.975"
- Flange Thickness: 0.207"
Inner Sleeve: - OD: 0.750"
- ID: 0.500"
- Length: 2.375"
Fastener Bolt Diameter: 1/2"
- Made from our HYPER-FLEX formula for extreme durability. Suggested uses include control arms, track rods, 4 link bars, push or nerf bars, tire carrier racks, engine/transmission mounts. Please note the proper preloads are calculated based on the dimensions listed in the chart. A non-preloaded bushing is not recommended. Only use DOM tubing or equivalent with no seam on ID of tubing. Each set includes 4-bushings and 2-sleeves. Outer tube and fastners are not included.
Part TypeSway Bar Link Bushing
Product LineUniversal Link- Flange Type Bushings
BrandENERGY SUSPENSION
Package Height3.3
Package Width4.2
Package Length4.5
Weight0.67 PG
Part CategoryPerformance Parts
Sleeves IncludedYes
Sleeve Inside Diameter0.5 in (12.7 mm)
Sleeve Length2.375 in (60.3 mm)
Bushing ColorBlack
PositionN/A
Bushing MaterialPolyurethane
QuantitySold as a kit
Bushing Flange Length0.207 in (5.258 mm)
Part FitmentSemi Universal
Barrel Length0.75 in (19.05 mm)
Bushing Outside Diameter1.5 in (38.1 mm)
Vendor Part Number9.9483G
Package Qty1
Package TypeEA
