Made in USA

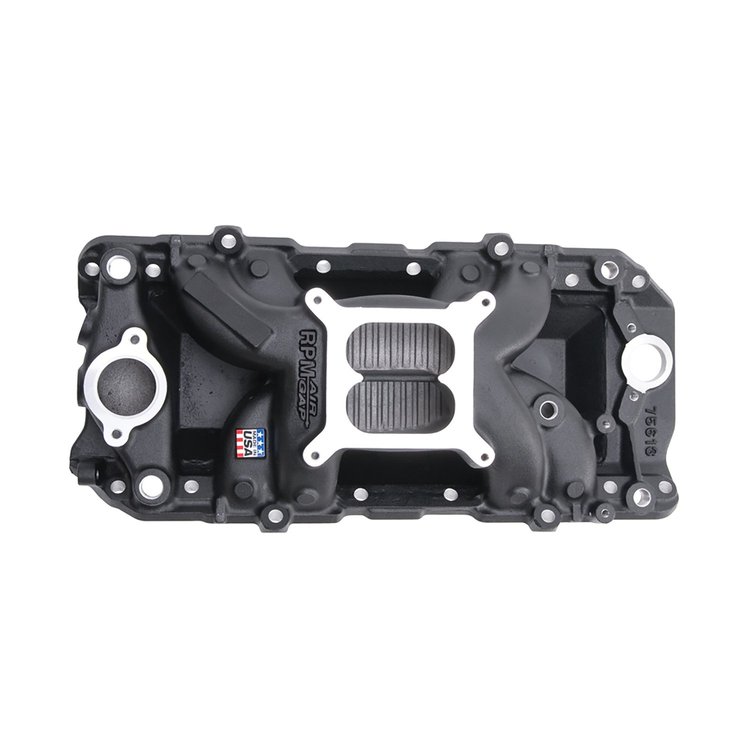

RPM Air-Gap 2-O Intake Manifold BB-Chevy 396-502 with oval port cylinder heads
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-75613

RPM Air-Gap 2-O Intake Manifold BB-Chevy 396-502 with oval port cylinder heads

$58995
4 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Big Block Chevy
    RPM Air-Gap 2-O Intake Manifold
  • Big Block Chevy 396-502
  • Oval Port Heads
  • Square Bore Carb Flange (Non-EGR)
  • 1500-6500 RPM Range
  • Black Powder Coated Finish

    Designed for Chevy 396-502 street applications with large oval port cylinder heads (1975-Earlier)or Pefromer/RPM heads, the RPM Air-Gap incorporates the same race-winning technology that's been used on the Victor Series competition intakes for years. Includes rear water outlets, two distributor clamp locations, and nitrous bosses. Accepts all late-model alternator and A/C brackets for the street. For square-bore carburetors only. No provision for exhaust-heated chokes and no exhaust crossover. Will not fit under stock hood of Corvette, 1965-67 Chevelle, or 1970-81 Camaro.

    Installation Notes
  • Port exit dimensions: 1.61" x 1.93"
  • Manifold height: (A) 4.45" , (B) 6.00"
  • Carb Pad Height: 5.22" p/n 555-210102

    Carb Recommendations
  • Edelbrock 650 cfm Thunder AVS Carburetor Manual Choke p/n 350-1905 , Electric Choke p/n 350-1906
  • Edelbrock 750 cfm Performer Carburetor Manual Choke p/n 350-1407 , Electric Choke p/n 350-1411
  • Edelbrock 800 cfm Performer Carburetor Manual Choke p/n 350-1412 , Electric Choke p/n 350-1413
  • Edelbrock 800 cfm Thunder AVS Carburetor Manual Choke p/n 350-1812 , Electric Choke p/n 350-1813

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeIntake Manifold
BrandEDELBROCK
Package Height7.8
Package Width15.0
Package Length23.5
Weight22.65 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard Deck
UsageStreet/Hi-Performance
Number Of CarbsOne
Intake MaterialAluminum
PositionN/A
Intake StyleDual plane
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeOval Port- Large
Intake FinishBlack powdercoated
Carburetor QuantityOne
Engine Make/SizeChevy Big Block
Intake Section IncludedComplete
Basic Operating Rpm Range1,500-6,500
EgrWithout EGR
Rpm Range1500-6500
Part FitmentSemi Universal
Vendor Part Number75613
Package Qty1
Package TypeEA
