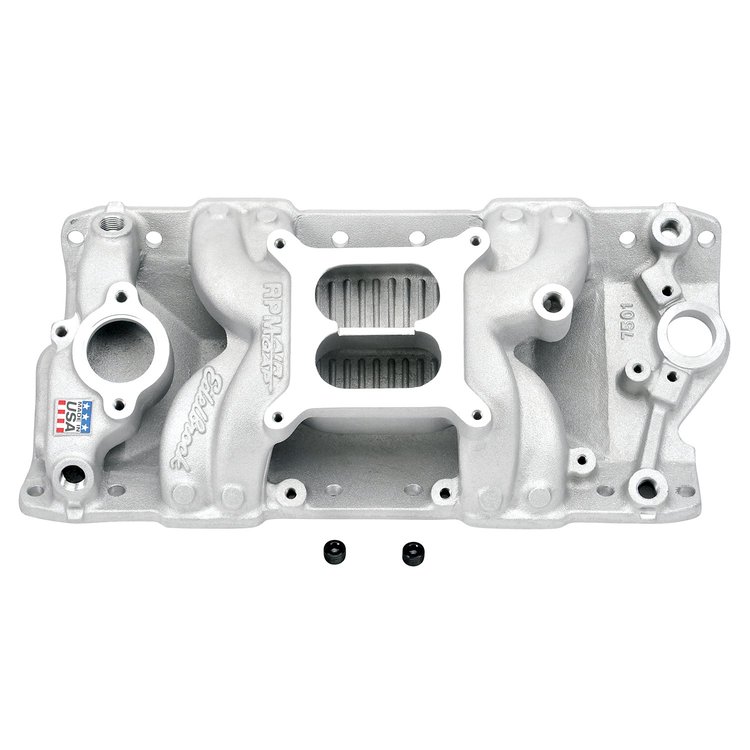

7501 RPM Air Gap Intake Manifold for 1955-1986 Small Block Chevy 262-400
- RPM Air-Gap Intake Manifold
- 1955-86 Small Block Chevy 262-400
- 4-bbl Square-Bore Carb Flange (non-EGR)
- 1500-6500 RPM Range
- Satin Finish
Designed for 1955-86 262-400 c.i.d. Chevrolet V8's, the award-winning RPM Air-Gap intake manifold incorporates the same race-winning technology that's used on our Victor Series competition intakes. The air-gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all 1976 and later alternator and A/C brackets for the street. The heater outlet boss is angled for proper fit over the valve cover. The temp sensor boss clears all waternecks. For square-bore carburetors only. No provision for exhaust heated chokes and no exhaust crossover. Not for 1987 and later cast iron heads or L98 cylinder heads. Will not fit under stock Corvette hood.
Installation Notes: - Port Exit Dimensions: 1.14" x 1.95"
- Manifold Height: (A) 4.20" (B) 5.25"
- Carb Pad Height: 4.72" Click here to determine carburetor pad height.
- Use Edelbrock Bolt Kit 350-8504.
- Recommended JEGS Intake Gasket: 555-210001.
Carb Recommendations - Edelbrock Performer 750cfm Carburetor Manual Choke p/n 350-1407 , Electric Choke p/n 350-1411
- Edelbrock Performer 800cfm Carburetor Manual Choke p/n 350-1412 , Electric Choke p/n 350-1413
- Edelbrock Thunder AVS 800cfm Carburetor Manual Choke p/n 350-1812 , Electric Choke p/n 350-1813
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
