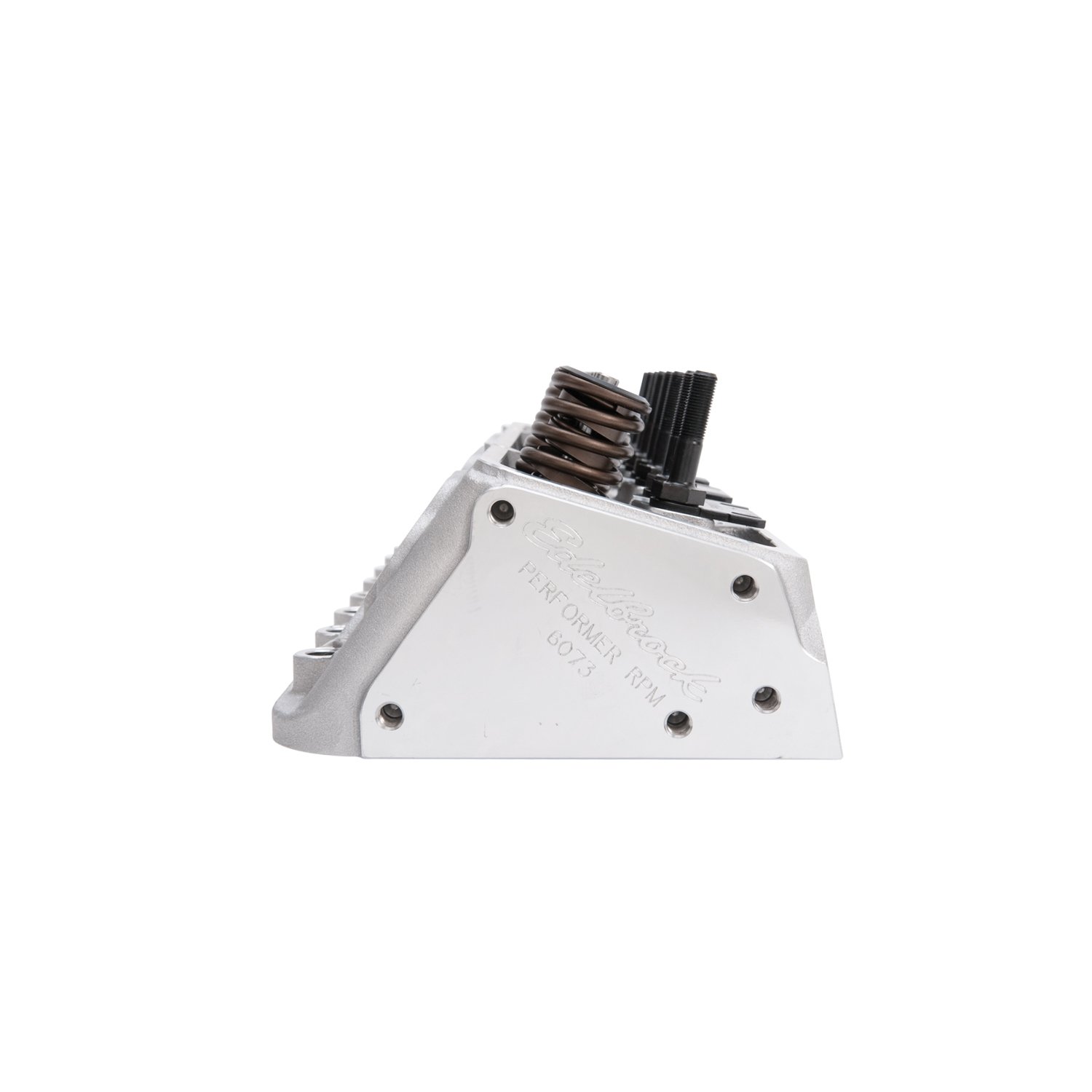

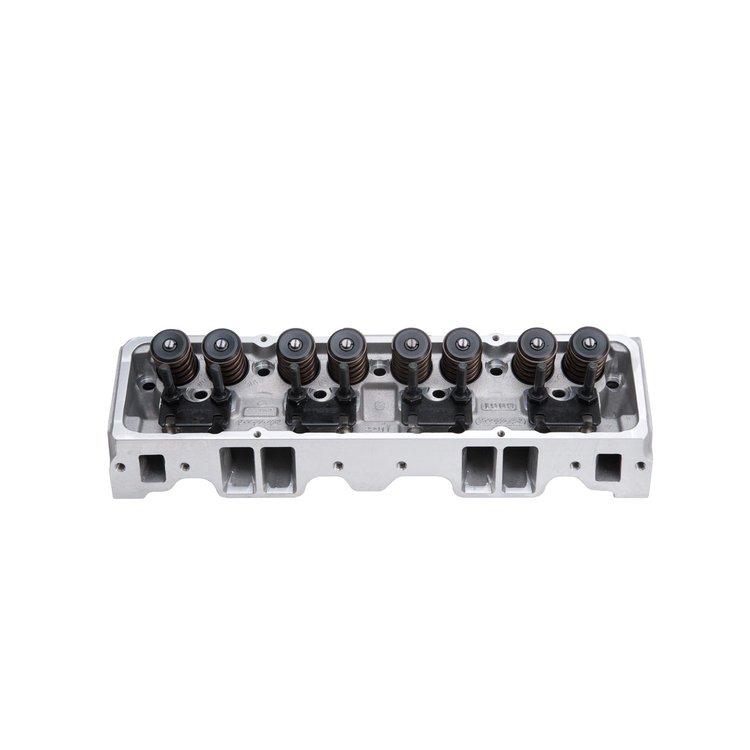

Vehicle Info NeededPerformer RPM Cylinder Head for Small Block Chevy
Ships on Sep 04, 2026
Lowest Price Guarantee- 1986 & Earlier Small Block Chevy 302-400ci
- Valve Springs for Hydraulic Roller
- Port Volumes: 195cc/65cc
- Combustion Chamber size: 70cc
- Valve Sizes: 2.02"/1.60"
- Straight Spark Plug
- Assembled, Sold Each
Designed for non-emissions 302, 327, 350 and 400 c.i.d. engines up to 1986, these heads Designed for non-emissions 302, 327, 350 and 400 c.i.d. engines up to 1986, these heads made 420 horsepower with the Performer RPM Power Package for small-block Chevys. Hardened pushrods are required.
Installation Notes: When using stock rockers on SB-Chevy Performer & Performer RPM heads, .100' longer than stock pushrods are required. Due to valve-to-cylinder bore interference, SB-Chevy heads may not be used on engines with less than 4' bore (262, 265, 283, 305, 307 c.i.d.) except with camshafts having less than .450' valve lift.
Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC (P/N 192-49776). They are 0.230' shorter than a conventional spark plug and have a 5/8' hex for easier access.Combustion Chamber Volume: 70cc Intake Runner Volume: 195cc Exhaust Runner Volume: 65cc Intake Valve Diameter: 2.02' Exhaust Valve Diameter: 1.60' Valve Stem Diameter: 11/32' Valve Guides: Manganese Bronze Deck Thickness: 9/16' Valve Spring Diameter: 1.46' Valve Spring Maximum Lift: 0.575' Rocker Stud: 3/8' Guideplate: Hardened Steel Pushrod Diameter: 5/16' Valve Angle: 23° Exhaust Port Location: Stock Spark Plug Fitment: 14mm x 3/4' Reach,
Gasket SeatValve Lift Intake Exhaust .100' 63 51 .200' 124 94 .300' 181 128 .400' 227 146 .500' 253 157 .600' 253 163 .700' N/A N/A Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.
Edelbrock Performer RPM Small Block Chevrolet Cylinder Heads
The Performer RPM Small Block aluminum cylinder heads are designed for Small Block Chevy 265, 283, 302, 305, 307 327, 350 and 400ci engines up to 2003. Performer heads are designed with compact combustion chambers and high-flow ports to increase throttle response and overall performance throughout the RPM power band. These cylinder heads are designed in-house in Torrance California and are cast from A356 aluminum heat treated to T-6 Aluminum specifications.
Show More
All performer heads feature a 9/16-inch deck, extra thick port walls with high flowing ports, ductile iron seats, stainless steel valves, threaded inserts for rocker studs and exhaust bolts as well as manganese bronze valve guides. Available with either stock straight or angled spark plug configuration, heads are available bare or dressed and pre-assembled. All heads are all sold individually. Reference individual part number listings for a comprehensive list of specifications.
Edelbrock Performer RPM Series Cylinder Heads are legal on pre-pollution controlled vehicles only.
