Vehicle Info NeededEDELBROCKPART NUMBER: 350-60059

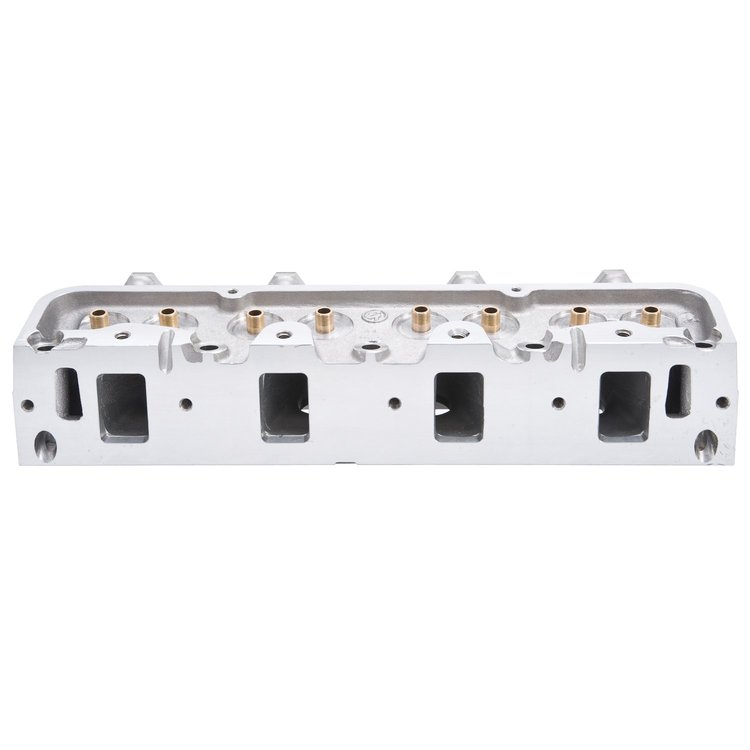

Performer RPM FE 390-428 Cobra Jet Aluminum Cylinder Head for Ford FE
$76695
5 left in stock
Ships Tomorrow
Lowest Price GuaranteePerformer RPM FE Aluminum Heads
- Performer RPM FE Head
- 1961-1976 Ford 390-428ci Cobra Jet
- Port Volume: 170cc/125cc
- 72cc Combustion Chambers
- Bare Head, Sold Individually
Note: 72cc chamber heads have both vertical and diagonal exhaust bolt patterns. 76cc heads have vertical exhaust bolt pattern only.
Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC (P/N 192-49776). They are 0.230' shorter than a conventional spark plug and have a 5/8' hex for easier access.
Combustion Chamber Volume: 72cc Intake Runner Volume: 170cc Exhaust Runner Volume: 125cc Intake Valve Diameter: 2.09' Exhaust Valve Diameter: 1.66' Valve Stem Diameter: 3/8" Valve Guides: Manganese bronze Deck Thickness: 5/8' Valve Spring Diameter: 1.55" Valve Spring Maximum Lift: .600" Rocker Stud: N/A Guideplate: N/A Pushrod Diameter: 3/8 Valve Angle: 13° Exhaust Port Location: Stock Spark Plug Fitment: 14mm x 3/4' Reach,
Gasket SeatValve Lift Intake Exhaust .100' 88 64 .200' 153 113 .300' 195 148 .400' 233 171 .500' 265 183 .600' 270 200 .700' N/A N/A Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCylinder Head
BrandEDELBROCK
Package Height8.7
Package Width11.5
Package Length26.0
Weight26.75 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
EmissionNon-Emissions
Exhaust Valves IncludedNo
Locks IncludedNo
Engine Make/SizeFord 390-428
Retainers IncludedNo
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough head
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedNo
Intake Valve Angle13
Valve Seat MaterialDuctile iron
Heat CrossoverNo
FinishCast Aluminum
Valve Springs IncludedNo
UsageStreet/Performance
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedNo
QuantitySold individually
Cylinder Head TypeStandard
Valve Stem Seals IncludedNo
Intake Valve Diameter2.09 in (53.086 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)125
Exhaust Port LocationStandard
Valve Guide MaterialManganese bronze
TypeBare
Combustion Chamber Volume (Cc)72
Machined For O-RingNo
PreparationRequires Professional Preparation (Bare)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleBare
Part FitmentSemi Universal
Intake Runner Volume (Cc)170
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.66 in (42.164 mm)
Vendor Part Number60059
Package Qty1
Package TypeEA
