Vehicle Info NeededEDELBROCKPART NUMBER: 350-5794

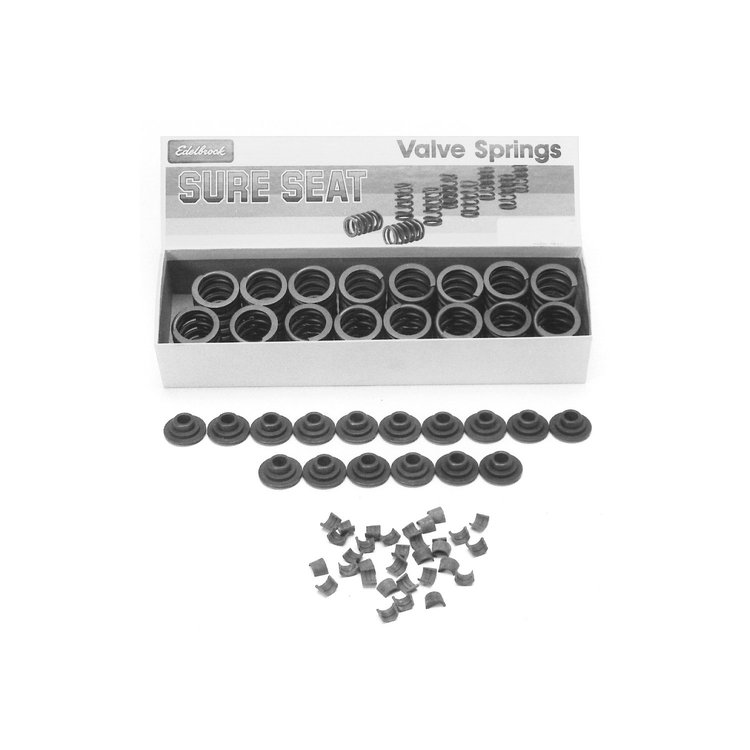

Complete Sure Seat Valve Spring Kit for 1957-1995 Small Block Chevy 262-400 OE Cast Iron Head Non-Rotator
$16795
1 left in stock
Ships Today
Lowest Price GuaranteeSmall Block Chevy
- Sure Seat Valve Spring Kit
- 1957-1995 Small Block Chevy 262-400
- Outside Diameter: 1.265"
- Inside Diameter: 0.880"
- Coil Bind: 1.160"
- Cast Iron OE Heads
- Non-Rotator
- Includes spring, retainer & stem locks
- Complete Kit: Includes Quality Steel Retainers And 7° Heat treated Locks
- For Use With Original Equipment Cast Iron Heads Only
- Designed for use with 350-7102/350-5002 Cams
- Open Pressure: 285 lbs @ .490"
- Seat Pressure: 110 lbs
- Installed Height: 1.7"
- Coil Bind: 1.160"
Part TypeValve Spring
BrandEDELBROCK
Package Height2.4
Package Width3.6
Package Length13.4
Weight3.95 PG
Part CategoryPerformance Parts
CoatedNo
Installed Pressure (Lbs.)110
Locks IncludedYes
Installed Height1.7 in (43.18 mm)
Retainers IncludedYes
Lock Style7 degree
Inside Diameter0.875 in (22.225 mm)
Spring TypeSingle
Number Of Springs Per ValveSingle
Camshaft TypeHydraulic
Coil Bind Height1.16 in (29.464 mm)
Damper Spring IncludedYes
PositionN/A
Open Height1.7 in (43.2 mm)
Lock Groove Quantity1-groove
Open Pressure (Lbs.)285
QuantitySold as a kit
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.265 in (32.1 mm)
Inside Diameter Of Outer Spring0.88 in (22.352 mm)
Lock MaterialSteel
Spring Rate (Lbs./In.)N/A
Part FitmentSemi Universal
Outside Diameter1.265 in (32.1 mm)
Retainer MaterialSteel
Vendor Part Number5794
Package Qty1
Package TypeEA
