Vehicle Info NeededEDELBROCKPART NUMBER: 350-5002

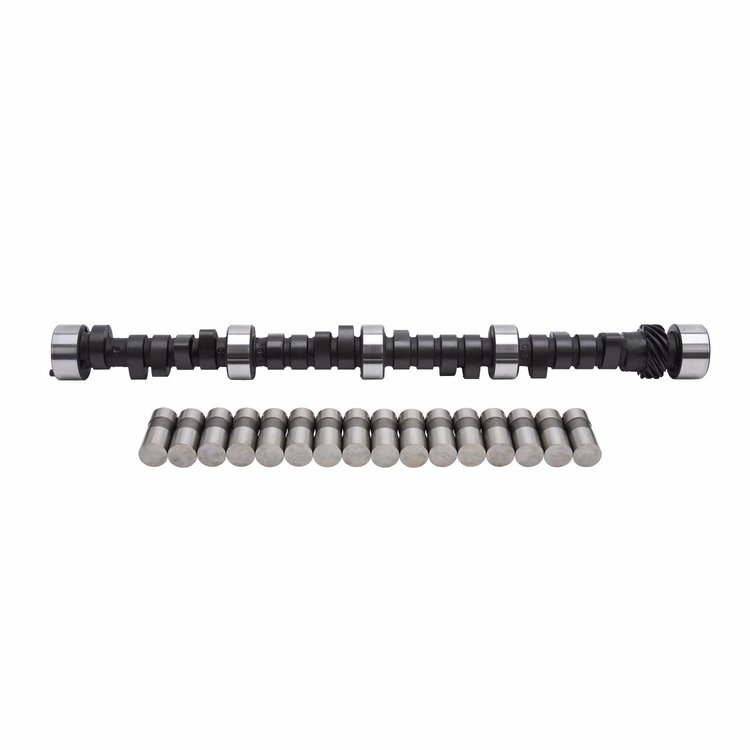

Torker-Plus Camshaft & Lifter Kit for Small Block Chevy
$38295
Ships on Sep 03, 2026
Lowest Price GuaranteeChevy Small Block V8 262-400ci
- Torker-Plus Camshaft & Lifter Kit
- 1957-1986 Small Block Chevy 283-400ci
- Lift: .488''/.488"
- Duration @ .050: 232°/234°
- Advertised Duration: 292°/300°
- 2500-6500 RPM Range
INSTALLATION NOTES:Operating Range 2500-6500 RPM Duration Advertised 292° Intake/300° Exhaust Duration @ .050' 232° Intake/234° Exhaust Lift @ Valve .488' Intake/.488' Exhaust Lift @ Cam .325' Intake/.325' Exhaust Lobe Separation Angle 108° Intake Centerline 106° Intake Timing @ .050" Open 10° BTDC
Close 42° ABDCExhaust Timing @ .050" Open 47° BBDC
Close 7° ATDC - Do not use late model timing chain and gear sets that are designed for emission-controlled engines. They are machined in a retarded position and are not recommended for this camshaft installation. Use Performer-Link Timing Chain Gear Set 350-7800 or Accu-Drive 350-7890.
- Do not use dual valve springs. Use recommended Edelbrock valve springs 350-5703.
- Use stock ratio rocker arms only.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandEDELBROCK
Package Height3.7
Package Width7.9
Package Length26.7
Weight13.58 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)234
Cam StyleHydraulic flat tappet
Exh. Duration Advertised (Deg)300
Locks IncludedNo
Engine Make/SizeChevy Small Block (262-400)
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.488
Int. Duration @ .050 In. (Deg)232
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,500-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.488 in (12.395 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)108
Rpm Range2000-9000
Lifter StyleHydraulic flat tappet
Advertised Duration292 int./300 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.488
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.488 int./0.488 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.488 in (12.395 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift232
Exhaust Duration At 050 Inch Lift234
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration300
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift232 int./234 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part Number5002
Package Qty1
Package TypeEA
