Vehicle Info NeededEDELBROCKPART NUMBER: 350-3849

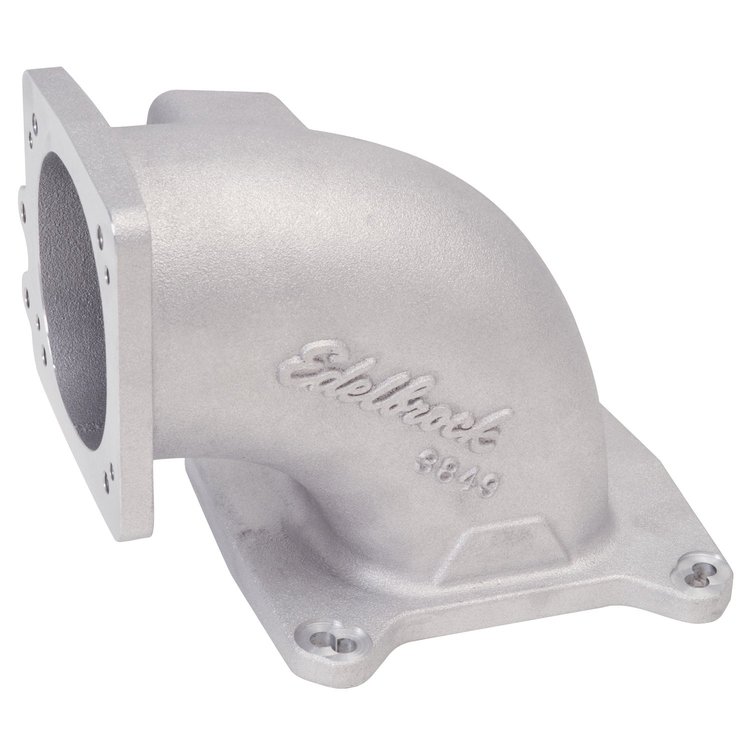

High Flow Intake Elbow for 95mm Throttle Body to 4150 Square-Bore Flange
$20595
2 left in stock
Ships Today
Lowest Price GuaranteeHigh Flow Elbows
- High Flow Intake Elbow
- Up to 95mm Throttle Body
- Mounts to 4150 Square-Bore Flange
- 90° Angle
- Satin Finish
These elbows are designed for use in high hp extreme race applications. An internal divider optimizes flow distribution to all ports of the manifold by reducing turbulence. This high flow elbow is an ultra high flow version which measures 4.50" from flange to throttle body centerline (7.75" overall height). During flow testing this elbow provided up to 1,050 cfm with a 90mm throttle body and 1,150 cfm with a 95mm throttle body. Does not accept LS1 throttle bodies.
Intake Elbow Dimensions: - Length (Throttle Body Centerline to Intake Flange Centerline): 5.50"
- Bore Centerline: 4.50"
- Overall Height: 7.75"
- Throttle Body Flange Angle: 90°
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeThrottle Body Adapter
BrandEDELBROCK
Package Height6.8
Package Width7.2
Package Length13.6
Weight5.95 PG
Part CategoryPerformance Parts
Throttle Body Bore Size (Mm)95
Intake Elbow FinishNatural
Intake Elbow Height7 in (177.8 mm)
QuantitySold individually
Intake Elbow TypeElbow
Intake Elbow MaterialAluminum
Vendor Part Number3849
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
