Vehicle Info NeededEDELBROCKPART NUMBER: 350-3848

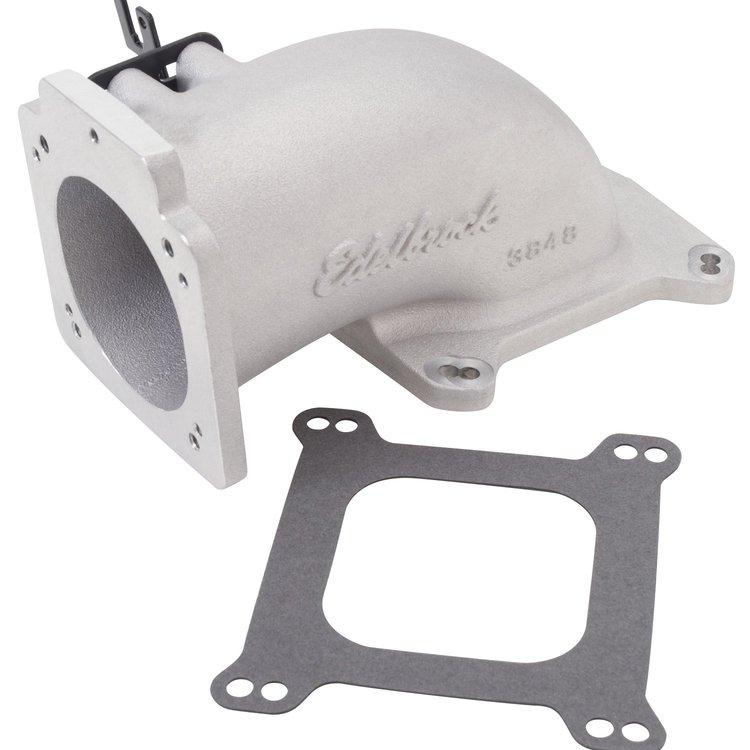

Low Profile Intake Elbow for 90mm Throttle Body to 4150 Square-bore Flange
$19595
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeLow & Ultra Low Profile Elbows
- Low Profile Intake Elbow
- Up to 90mm Throttle Body Bore Size
- Mounts to 4150 Square-Bore Flange
- Satin Finish
Notes: - Throttle bore center sits 7.00" forward and only 2.00" up from the manifold mounting flange
- Recommend Edelbrock 90mm throttle body #350-3869 for optimum performance.Intake Elbow Dimensions:
- Length (Throttle Body Centerline to Intake Flange Centerline): 7.00"
- Bore Centerline: 2.00"
- Overall Height: 5.04"
- Throttle Body Flange Angle: 95°
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeThrottle Body Adapter
BrandEDELBROCK
Package Height6.8
Package Width7.4
Package Length14.7
Weight5.8 PG
Part CategoryPerformance Parts
Throttle Body Bore Size (Mm)90
Intake Elbow FinishNatural
Intake Elbow Height5.04 in (128.016 mm)
QuantitySold individually
Intake Elbow TypeElbow
Intake Elbow MaterialAluminum
Vendor Part Number3848
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
