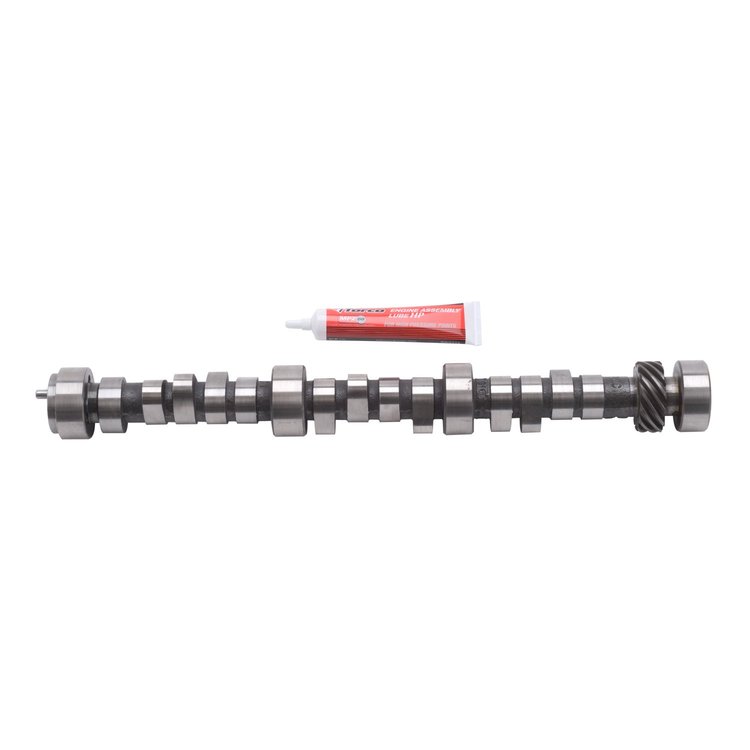

Rollin' Thunder Hydraulic Roller Camshaft for Chevy 4.3L 90° V6
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-3714

Rollin' Thunder Hydraulic Roller Camshaft for Chevy 4.3L 90° V6

$58395
ShippingShips on Sep 04, 2026
Lowest PriceLowest Price Guarantee

Chevy V6
    Rollin' Thunder Hydraulic Roller Camshaft
  • Chevy 4.3L 90° V6
  • Lift: .479''/.488''
  • Duration @ .050: 210°/214°
  • Advertised Duration: 272°/276°
  • Idle-5500 RPM Range

    Cam Notes: For use with OEM hydraulic roller lifters (use original lifters).Not for 1992-later 4.3L balance shaft engines. Requires aftermarket computer chip(not available from Edelbrock) for usewith manifold p/n 350-3713. Call EdelbrockTech 800-416-8628 for info.

     Open 2° ATDC
     Close 32° ABDC
    Exhaust Timing @ .050" Open 44° BBDC
     Close 10° BTDC

    Important Application Information:
    Rollin Thunder Hydraulic Roller cams are for street high-performance and racingapplications only - not for heavy vehicles. Use with Edelbrock Performer RPM heads(or other aftermarket heads), adjustable valvetrain components, screw-in studs, high performance adjustable rocker arms and at least 9.5:1 compression ratio. Headers,high-energy ignitions, lower-than-stock rear gearing and a high-performance torqueconverter (in auto. transmission equipped vehicles) are necessary.

    INSTALLATION NOTES:
  • Do not use late model timing chain and gear sets that are designed for emission-controlled engines. They are machined in a retarded position and are not recommended for this camshaft installation. Use Performer-Link Timing Chain Gear Set 350-7801.
  • Use recommended Edelbrock Valve Springs 350-5814

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft
BrandEDELBROCK
Package Height3.54
Package Width7.75
Package Length26.5
Weight8.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)214
Cam StyleHydraulic roller tappet
Exh. Duration Advertised (Deg)276
Engine Make/SizeChevy 262
Intake Valve Lift With Factory Rocker Arm Ratio (I0.479
Int. Duration @ .050 In. (Deg)210
Basic Operating Rpm RangeIdle-5,500
Intake Valve Lift0.479 in (12.167 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)272
Lobe Separation (Deg)112
Rpm Range1500-5500
Advertised Duration272 int./276 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.488
UsageOEM
Valve Lift With Factory Rocker Arm Ratio0.479 int./0.488 exh.
QuantitySold individually
Exhaust Valve Lift0.488 in (12.395 mm)
Advertised Intake Duration272
Intake Duration At 050 Inch Lift210
Exhaust Duration At 050 Inch Lift214
Advertised Exhaust Duration276
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift210 int./214 exh.
Valve Springs RequiredYes
Vendor Part Number3714
Package Qty1
Package TypeEA
No Questions
No Reviews
Please click here to download the instructions PDF file
