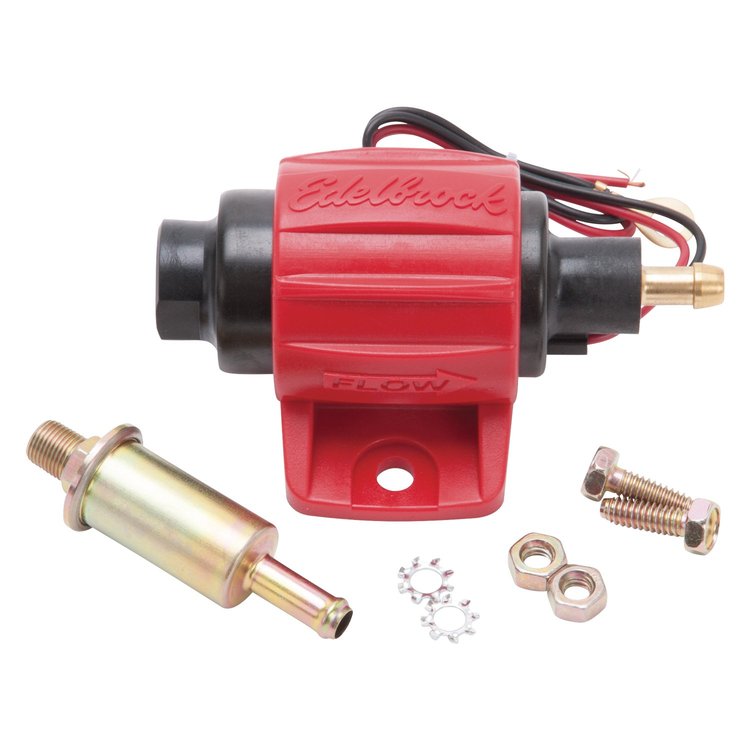

Universal Micro Electric Fuel Pump, 38 GPH for Gasoline and E85
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-17301

Universal Micro Electric Fuel Pump, 38 GPH for Gasoline and E85

$6995
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Gasoline/E85 Pumps
Universal Micro Electric Fuel Pump
  • 38 GPH / 144 LPH Flow Rating
  • Compatible with Gasoline and E85
  • Gravity Fed External Design
  • Simple Two Wire Hookup
  • Hose Barb Inlet and Outlet

    A gravity fed pump has to sit at or below tank level, because it is designed to be pushed rather than to pull a head of fuel, and mounting one high is the usual cause of a pump that whines and starves. Wiring is two wires, and the E85 compatibility matters if the car may ever see corn fuel, since standard pump internals do not survive it.

    Edelbrock 17301 Micro Fuel Pump Specifications:

    • 38 GPH / 144 LPH maximum flow rating.
    • Compatible with gasoline and E85.
    • External, gravity fed mounting, hose barb inlet and outlet.
    • Two wire electrical connection.
    • No fuel sending unit or gasket included. Mount at or below tank level.
  • Part TypeElectric Fluid Pump
    BrandEDELBROCK
    Package Height2.7
    Package Width7.0
    Package Length7.5
    Weight1.04 PG
    Part CategoryPerformance Parts
    Wiring Harness IncludedNo
    Internal Or ExternalExternal
    Outlet Quantity1
    Inlet TypeHose Barb
    Strainer IncludedNo
    Maximum Flow Rating144 LPH/38
    Fuel TypeGas
    Mounting Bracket IncludedYes
    Fuel Sending Unit IncludedNo
    Seal And Lock Ring IncludedNo
    Outlet Outside Diameter0.312
    Universal Or Specific FitUniversal
    Gasket Or Seal IncludedNo
    Terminal TypeLead Wire
    Regulator IncludedNo
    In Tank Or ExternalExternal
    Mounting Hardware IncludedYes
    Pump TypeElectric
    Pump DesignIn-line Electric Fuel Pump
    Fuel Pump Inlet TypeHose Barb
    Outlet TypeHose Barb
    Minimum Pressure4
    Part FitmentSemi Universal
    Negative GroundYes
    Maximum Pressure7
    Vendor Part Number17301
    Package Qty1
    Package TypeEA
