Eastwood 65375 Features:

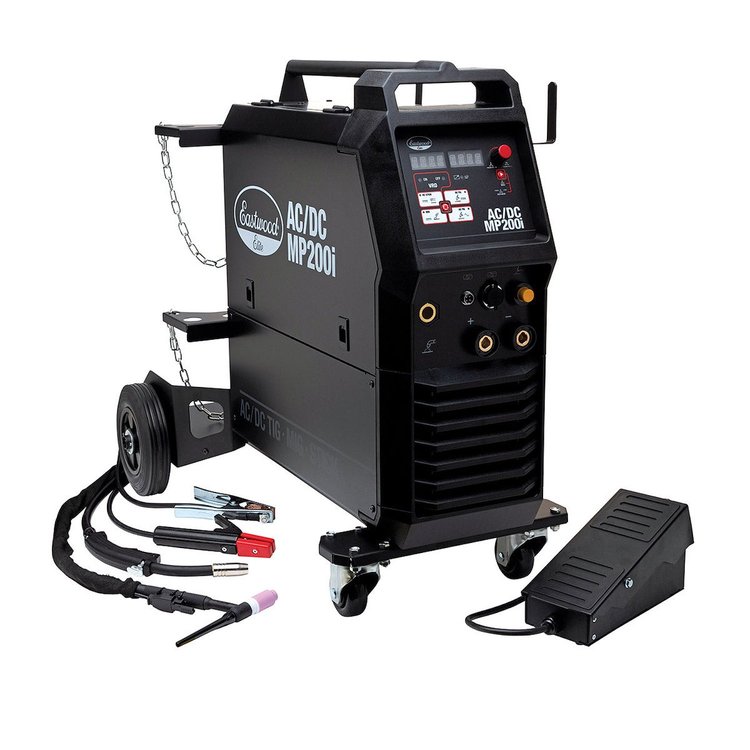

Most multi-process welders are primarily MIG units with the option to TIG-weld steel and, without a foot pedal, they often only let you scratch-start. The Eastwood Elite MP200i AC/DC raises the bar with this TIG-focused MP welder that features high-frequency start and rocker-style foot pedal so you can confidently TIG-weld steel, stainless steel, or aluminum. This powerful 200-Amp welder can operate on either 120V or 240V power for greater versatility. It takes advantage of an advanced IGBT inverter to reduce weight and bulk. AC/DC square wave technology allows for flawless TIG welds on aluminum. A dynamic cooling fan keeps everything running cool. Everything you need to weld mild or stainless steel is included - a flex-head WP-17 torch with included gas lens kit for TIG welding, a Tweco-style torch for MIG, and an electrode holder for stick welding. An optional spool gun can be added to allow MIG welding aluminum. The heavy duty internal MIG wire feed motor holds up to 11-lb spools of steel or stainless wire. The MP200i AC/DC is separately plumbed for both MIG and TIG welding so you can quickly switch between operations without having to change over gas bottles and regulators. The integrated rolling cart includes storage for two gas bottles as well as side hooks for easy cable storage. And its all backed up by Eastwoods 3-year warranty and lifetime tech support. Eastwood Elite MP200i AC/DC

Features:

• Operates on either 120V or 240V powerAdvanced IGBT inverter power supply and square-wave inverter technologyMIG- or stick-weld thin steel and stainless steel up to 3/8-in thick; aluminum up to 1/4-in thick (with optional spool gun)TIG-weld steel, stainless steel, and aluminum up to 1/4-in thick True AC/DC TIG welder with foot pedal and high-frequency startWP17 flex-head TIG torch with gas lens kit for improved performanceDynamic cooling fan operates only when neededFully independent MIG and TIG gas systems includes 2 gas regulator/flow metersIntegrated storage cart with wheels, dual gas bottle storage, and side hooks for easy cable storageBacked by Eastwood's no-hassle return policy and 3-year warranty
  • Input Voltage:
  • 240 VAC, 50/60 Hz, 1 Phase
  • 120 VAC, 50/60 Hz, 1 Phase
  • No Load Voltage: 68V
  • Rated Input Current:
  • 240V MIG: 34.2 Amps
  • TIG: 25.7 Amps
  • ARC: 40.0 Amps
  • 120V MIG: 20.0 Amps
  • TIG: 20 Amps
  • ARC: 19.2 Amps
  • Output Current Adjustment:
  • 240V MIG: 40-200 Amps
  • TIG (DC): 5-200 Amps
  • TIG (AC): 10-200 Amps
  • ARC: 20-200 Amps
  • 120V MIG: 40-120 Amps
  • TIG (DC): 5-120 Amps
  • TIG (AC): 10-120 Amps
  • ARC: 20-120 Amps
  • Duty Cycle:
  • 240V MIG: 40% @ 200 AMPS / 100% @ 130 AMPS
  • TIG: 50% @ 200 AMPS / 100% @ 140 AMPS
  • ARC: 40% @ 200 Amps / 100% @ 130 AMPS
  • 120V MIG: 60% @ 80 AMPS / 100% @ 60 AMPS
  • TIG: 60% @ 100 AMPS / 100% @ 80 AMPS
  • ARC: 60% @ 60 Amps / 100% @ 50 AMPS
  • MIG Wire Size: .023 to .035
  • Power Factor: 0.73
  • Efficiency: 80%
  • MIG Wire Feed Speed: 35
  • 590 in/min
  • Pre Flow Time:
  • MIG: 0 seconds
  • TIG: 0.25 seconds
  • Post Flow Time:
  • MIG: 1.0 seconds
  • TIG: 0
  • 30 seconds
  • TIG Welding Starting Method: High Frequency Start
  • Cooling Method: Dynamic Cooling Fan (only runs when required)
  • Gas System: Fully Independent MIG and TIG Systems
  • Gas Flowmeter: CO2/Argon Compatible
  • Welding Gas Bottle Capacity: Two 40-125 cu ft Cylinders
  • Dimensions: 35.20-in. x 19.88-in. x 30.28-in.
  • Weight: 95.68 lb (43.4 kg)
  • Plug Type: NEMA 6-50P
  • Wire Spool Sizes: 4 or 8-in. wire spools (11 lb max weight)
  • Rated Duty Cycle: Refers to the amount of welding that can be done within a specified time.
  • TIG Welding Duty Cycle: 50% at full 200 Amps, allowing for 5 minutes of welding and 5 minutes of cooling within a 10-minute block.
  • Exceeding Duty Cycle: Welder will automatically shut off but the fan will continue running.
  • Recovery: Welder will switch back on when safe temperature is reached.
  • Increasing Duty Cycle: Turn down the Voltage Output control.
