Eastwood 59983 Features:

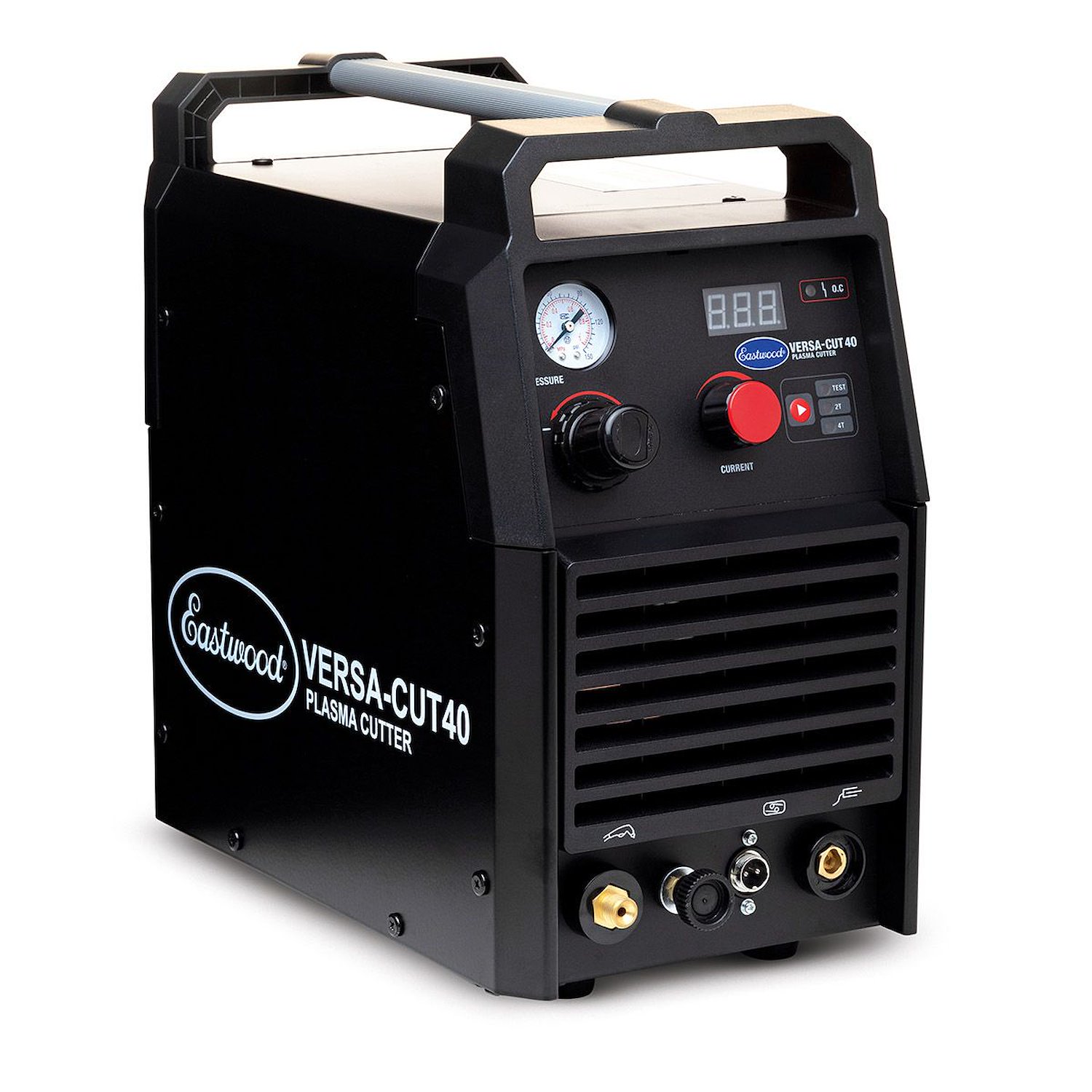

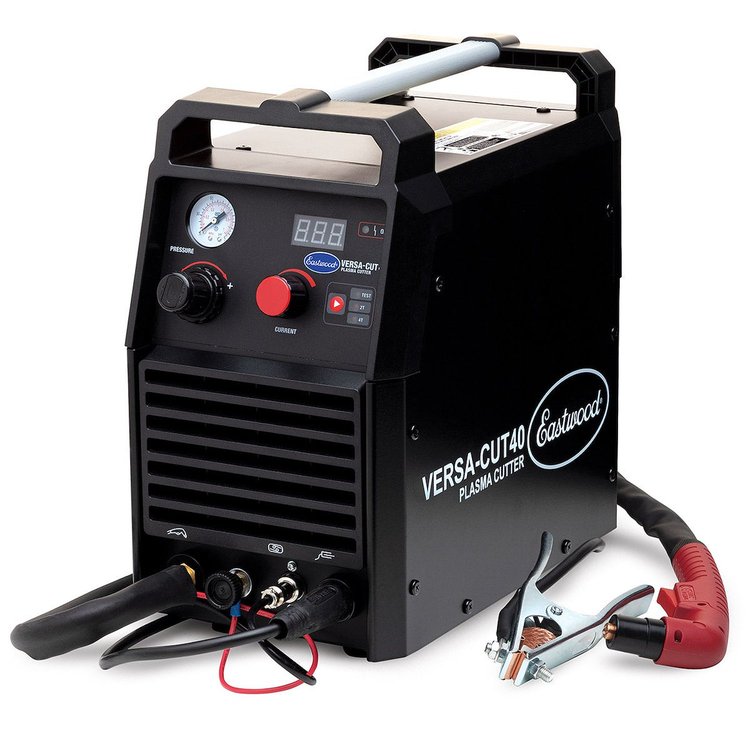

Enjoy professional cutting power on small to medium metal fabrication projects with the Eastwood Versa-Cut 40 plasma cutter. This portable plasma cutter has an adjustable output up to 40 Amps to cleanly slice through steel from as thin as 24-gauge to as thick as 3/8-in. thick. You can use it on stainless steel and aluminum, too. The Versa-Cut 40 weighs just 24-lbs, requires only 5-7 CFM of compressed air, and can plug into a 120V or 240V power input, making it an exceptionally versatile and portable unit that you can take anywhere its needed. The included Trafimet CB50 torch has a long 20-ft. cable for maximum maneuverability as you work. It also uses common-style consumables that are available from most local welding supply shops. A 60% duty cycle gives you plenty of up-time to complete long cuts. The Versa-Cut 40 uses modern IGBT inverter technology and features 2T/4T modes for smoother long cuts, a breaker switch, and a digital amperage readout for precision. Its pilot arc feature delvers an instant arc when cutting difficult materials like rusted steel or expanded metal. And its all backed up by Eastwoods 3-year warranty, hassle-free 90-day return policy, and lifetime tech support. **Due to its high-frequency start feature, we do not recommend using this machine on a CNC plasma table.** The Eastwood Versa-Cut 40

Features:

• Operates on either 120V or 240V power40-amp output easily slices through metal up to 3/8-in thick Requires 7 cfm or less of compressed air Pilot arc feature allows for instant arc striking when cutting rusty material or expanded metal2T/4T torch mode reduces fatigue on long cuts Digital amperage readout for increased precisionTrafimet CB50 cutting torch with 20-ft cable uses commonly available consumablesConvenient 10-ft ground cable with clamp Lightweight and portable at less than 24 lbsBacked by Eastwood's no-hassle return policy and 3-year warranty
  • Input: 120 VAC, 50/60 Hz and 240 VAC, 50/60 Hz
  • Power Cord Receptacle Plug: NEMA 6-50R
  • Output: 40 Amps
  • Duty Cycle on 240V: 60% @ 40 Amps and 100% @ 31 Amps
  • Duty Cycle on 120V: 60% @ 30 Amps and 100% @ 23 Amps
  • Cooling Method: Fan
  • Torch: Trafiment CB50
  • Torch Tip: 0.1mm
  • Max Cut: 3/8"
  • Air Requirements: 5-7 cfm @ 20
  • 60 psi
  • Torch Cable Length: 20'
  • Power Cable Length: 6'
  • Plug Type: NEMA 6-50P
  • Ground Cable Length and Gauge: 10' long, 5 gauge wire
  • Unit dimensions: 14.06" Long X 8.46" Wide X 14.69" Tall
  • Unit weight: 23.6 LBS
