Made in USA
High Amperage Adjustable Dual Electric Fan Controller 150-240°F
InfoVehicle Info Needed
DERALEPART NUMBER: 259-16788

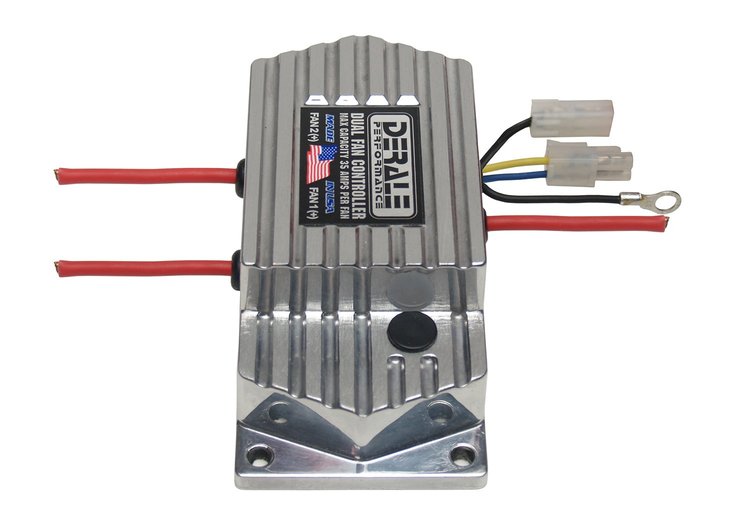

High Amperage Adjustable Dual Electric Fan Controller 150-240°F

$21020
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

High Amperage Adjustable Electric Fan Controllers
    High Amperage Adjustable Electric Fan Controller
  • Dual Fan Operation
  • Adjustable Turn-On Temp from 150-240°F
  • Push-In Radiator Temp Probe

    Designed with quality and performance in mind, this High Amperage Dual Fan Controller breaks new ground in the industry of electric fan controllers. 100% USA made, a bulletproof design, 35 amp per fan amperage rating, adjustability from 150°-240°F, and a die cast bright finish aluminum cap, come together to make this dual fan controller stand out from the crowd. It's capable of controlling two separate 35 amp fans at different turn-on temperatures, with only a single probe. The first electric fan will be activated at the temperature set by the user followed by the second electric fan when the temperature becomes 10°F warmer. Each electric fan will turn off at 10°F below its turn-on temperature. Kit comes complete with wiring harness, fusible link, all necessary electrical connectors and push-in style radiator probe.

    Features:
  • Adjustable turn-on temperature from 150-240°F
  • Rated at a maximum 35 amps per fan
  • Activates fan #1 at adjusted temperature
  • Activates fan #2 at 10°F warmer than fan #1
  • Turn-off temperatures are preset at 10°F below turn-on temperatures
  • Die cast aluminum housing
  • AC override circuit included
  • Push-in radiator probe

    Specifications:
  • Amp Rating: 35 amp per fan
  • Width: 2-3/8"
  • Length: 4-5/8"
  • Height: 1-9/16"
Part TypeElectric Fan Controller
BrandDERALE
Package Height2.3
Package Width4.4
Package Length7.3
Weight1.35 PG
Part CategoryAccessories
Wiring Harness IncludedYes
Thermal Switch StyleAdjustable fan control kit
Sending Unit IncludedYes
Manual Override Switch IncludedNo
Fan QuantityDual
Adjustment Range (F)150-240 degrees F
Sending Unit StyleRadiator probe
Air Conditioning Relay IncludedYes
QuantitySold as a kit
Relay IncludedYes
Vendor Part Number16788
Package Qty1
Package TypeEA
