Vehicle Info NeededDERALEPART NUMBER: 259-15900

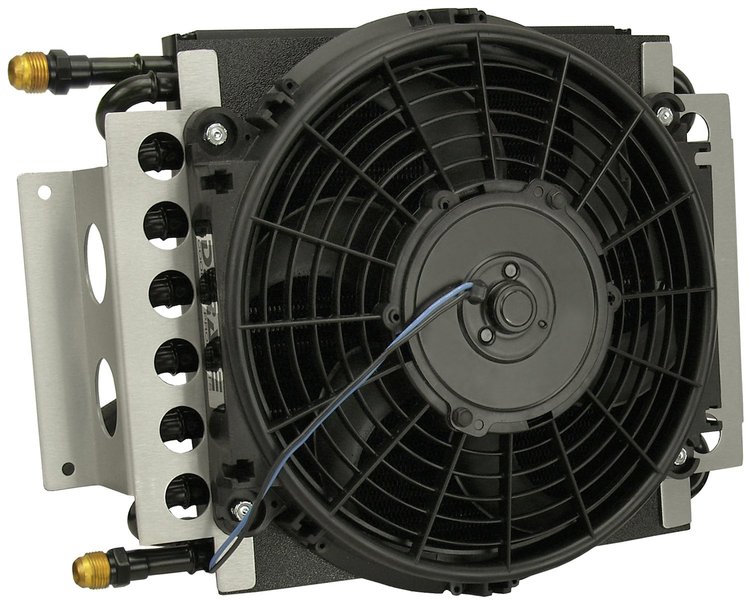

Electra-Cool Trans Cooler Kit Inlet Size: -8AN
$39784
2 left in stock
Ships Today
Lowest Price GuaranteeTrans Cooler Kits
- Electra-Cool Trans Cooler Kit
- Inlet Size: -8AN
- 15.75" Width x 11.5" Height x 5" Depth
- 16 Pass
Specifications: - Cooler style: 16 pass Tube & Fin
- Inlet size: -8AN
- Fan size: 10"
- CFM: 650
- Amp draw: 5.3
- Width: 15-3/4"
- Height: 11-1/2"
- Depth: 5"
- Inlet dim: 8-3/4"
- Mounting: 14-3/4" x 5-1/4"
- Cooler fluid capacity: 19.6 oz
- Hose size: 1/2"
- Hose length: 10'
- Airflow: Puller (reversible)
Part TypeEngine Oil and Auto Trans Oil Cooler
BrandDERALE
Package Height6.6
Package Width14.7
Package Length19.2
Weight11.8 PG
Part CategoryPerformance Parts
Overall Thickness5 in (127 mm)
Overall Height11.5 in (292.1 mm)
Outlet Size-8 AN
Inlet Size-8 AN
Fan QuantitySingle
QuantitySold as a kit
Cooler ConstructionTube and fin
Inlet AttachmentMale Threads
Core Height10 in (254 mm)
Cooler FinishBlack painted
Core Thickness1.5 in (38.1 mm)
Fan Diameter10 in (254 mm)
Number Of Cooling Rows16
Core Width10 in (254 mm)
Outlet AttachmentMale Threads
Overall Width15.75 in (400.1 mm)
Cooler MaterialCopper/Aluminum
Part FitmentSemi Universal
Maximum Fan Cfm650 cfm
Vendor Part Number15900
Package Qty1
Package TypeEA
