Vehicle Info NeededDERALEPART NUMBER: 259-13316

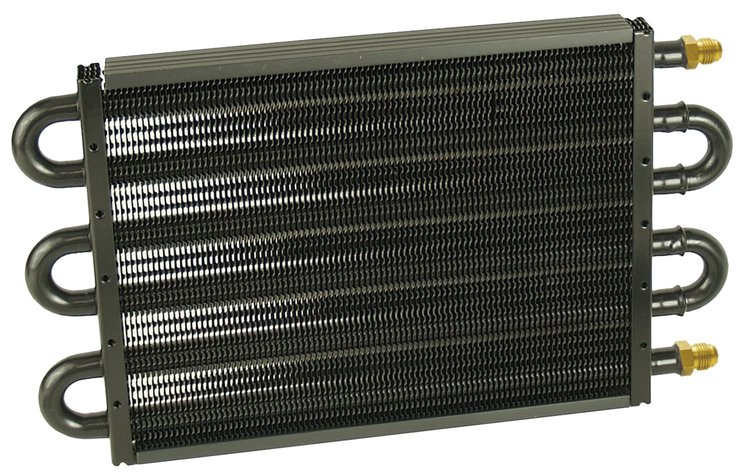

Series 7000 Tube & Fin Cooler
$6143
4 left in stock
Ships Today
Lowest Price GuaranteeTube & Fin Cooler Cores
Series 7000 Tube & Fin Cooler CoreInlet size: -6AN GVW: 15500 13-1/2"W x 7-5/8"H x 3/4"D 6 Pass No Hardware Included
Specifications
- Cooler style: Tube & Fin
- Construction: Copper tube and aluminum fin
- Inlet size: -6AN
- GVW: 15500
- Width: 13-1/2"
- Height: 7-5/8"
- Depth: 3/4"
- Inlet dim: 6-1/4"
- Mounting: 9-5/8"
- Derale Series 7000 Universal Tube & Fin Coolers feature 1/2" copper tubing expanded into aluminum cooling fins and embossed turbulators which are protected by extruded plastic guards. They are built with -6AN inlets and can be used as a transmission cooler, engine oil, power steering, or fuel cooler with equal efficiency.Features
- Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
- Extruded plastic cooling fin guards
- Available in 2, 4, 6, 8, and 10 pass cooler designs
- 1/2" copper tubing expanded into aluminum cooling fins
- -6AN inlets
Part TypeFluid Cooler
Product LineDerale Series 7000 Universal Tube & Fin Coolers
BrandDERALE
Package Height2.8
Package Width12.3
Package Length18.1
Weight1.8 PG
Part CategoryAccessories
Overall Thickness0.75 in (19.1 mm)
Overall Height7.625 in (193.7 mm)
Outlet Size-6 AN
Inlet Size-6 AN
QuantitySold individually
Cooler ConstructionTube and fin
Inlet AttachmentMale Threads
Core Height7.625 in (193.675 mm)
Cooler FinishBlack anodized
Core Thickness0.75 in (19.05 mm)
Number Of Cooling Rows6
Core Width9.625 in (244.475 mm)
Outlet AttachmentMale Threads
Overall Width13.5 in (342.9 mm)
Cooler MaterialAluminum
Part FitmentUniversal
Vendor Part Number13316
Package Qty1
Package TypeEA
