Made in USA

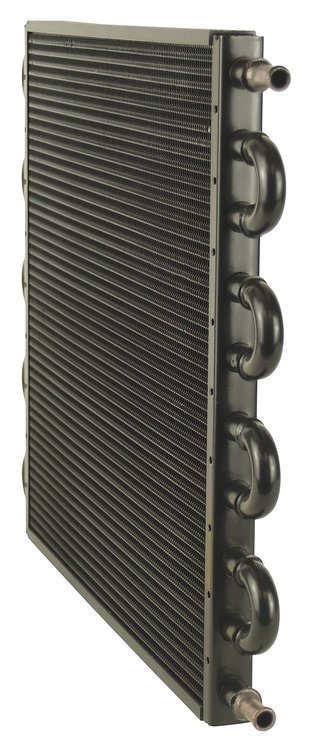

Series 7000 Tube & Fin Cooler Kit
InfoVehicle Info Needed
DERALEPART NUMBER: 259-13105

Series 7000 Tube & Fin Cooler Kit

$10768
5 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Tube & Fin Cooler Kits
Series 7000 Tube & Fin Cooler Kit
  • Inlet Size: 11/32"
  • GVW: 22500
  • 16-5/8''W x 12-5/8''H x 3/4''D
  • 10 Pass
  • Complete Hardware Kit Included

    • Cooler style: Tube & Fin
    • Construction: Copper tube and aluminum fin
    • Inlet size: 11/32" barb
    • GVW: 22500
    • Width: 16-5/8"
    • Height: 12-5/8"
    • Depth: 3/4"
    • Inlet dim: 11-1/4"
    • Mounting: 13-3/4"
    • Hose size: 11/32"
    • Hose length: 4'
  • Derale Series 7000 Oil & Transmission Coolers offer the best quality and value in a tube and fin cooler. These tube & fin coolers features copper tubing expanded into aluminum cooling fins and include embossed turbulators which serve to agitate fluid for maximum heat transfer. They also improve shifting performance and extend the life of the transmission by eliminating heat-related transmission failures. They can be used as a transmission cooler, engine oil, power steering, or fuel cooler with equal efficiency.

    Show More

    Coolers come with either -6AN or 11/32" end fittings and are sold individually, or in a kit. Kits include OE-spec high-temperature oil hose, nylon mounting rods, metal mounting strips, insta-dapt 2-way radiator adapter, stainless steel hose clamps, and installation instructions.

    Features:

    • Prevents heat related transmission failures
    • Extends transmission and fluid life
    • Improves transmission performance
    • Seamless 1/2'' copper tubing expanded into aluminum cooling fins for maximum heat transfer
    • Turbulator fins inserted in each tube agitate fluid for heat transfer
    • Black powdercoating and plastic fin guards protect cooler during installation.
    Part TypeAuto Trans Oil Cooler
    Product LineDerale Series 7000 Oil & Transmission Coolers
    BrandDERALE
    Package Height2.1
    Package Width13.0
    Package Length17.1
    Weight4.56 PG
    Part CategoryAccessories
    Overall Thickness0.75 in (19.1 mm)
    Overall Height12.625 in (320.7 mm)
    QuantitySold as a kit
    Cooler ConstructionTube and fin
    Inlet AttachmentHose barb
    Inlet Size (In.)11/32
    Core Height12.5 in (317.5 mm)
    Cooler FinishBlack painted
    Core Thickness0.75 in (19.05 mm)
    Number Of Cooling Rows10
    Core Width14 in (355.6 mm)
    Outlet AttachmentHose barb
    Overall Width16.625 in (422.3 mm)
    Cooler MaterialCopper/Aluminum
    Part FitmentUniversal
    Vendor Part Number13105
    Package Qty1
    Package TypeEA
