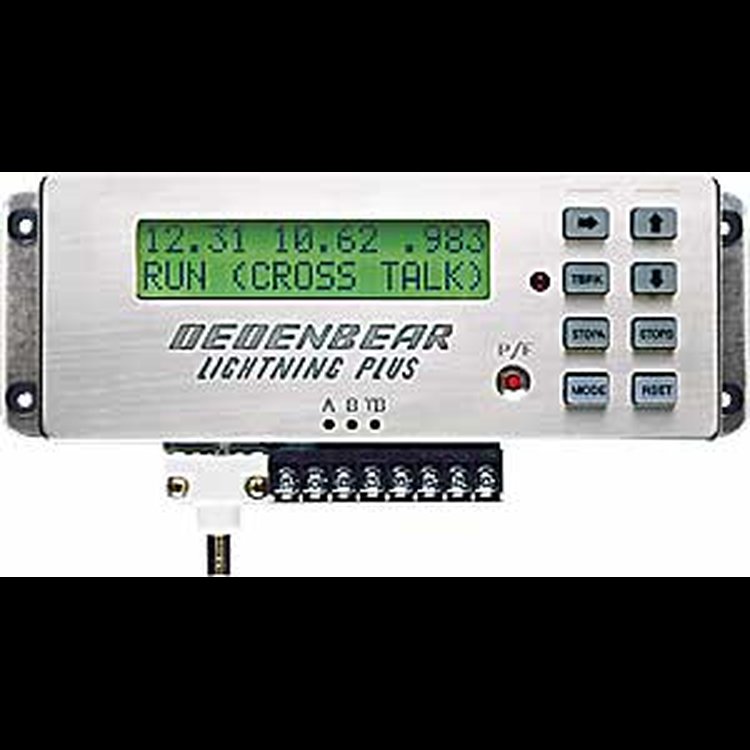

Lightning Plus Delay Box with Multiple Outputs 7.5" x 3" Dashboard Cutout

Name: Lightning Plus Delay Box with Multiple Outputs 7.5" x 3" Dashboard Cutout
Brand: DEDENBEAR
SKU: 302-L2
Price: 709.99 USD
Availability: InStock

^$709⁹⁹

Ships on Sep 03, 2026

Lowest Price Guarantee

Lightning Plus Delay Box

Lightning Plus Delay Box with Multiple Outputs

7.5'' x 3'' Dashboard Cutout

250% larger viewable area

Features Include:

250% larger viewable area vs. L1
Billet Aluminum Enclosure
More Outputs than comparable boxes under $400
4 Different Delay Modes - This gives you the ability to set the mode to fit your needs.
Exclusive "Cross-Talk"
"Crossover"
"Interface"
"Delay"
Skip Up and Skip Down (same as tap up/down) - You can add or subtract from your delay with a push of a separate button after you release your transbrake button. Programmable to the thousandth of a second (.001) with recall built-in to see how many times you skipped.
Starting Line Control Output with Adjustable Time Release - Allows you to put your foot on the floor at transbrake apply and your throttle stop holds the motor at your staging RPM. You can adjust the time when the motor pulls to wide open before the transbrake releases.
"Super Start" Automatic Starting Line Control for activating a Throttle Stop prior to Staging - Allows you to put your foot on the floor at transbrake apply and your throttle stop holds the motor at your staging RPM. You can adjust the time when the motor pulls to wide open before the transbrake releases.
Two 4-Stage Timers - Each adjustable to the thousandth of a second (.001). Ideal for Throttle stops, shift by time, nitrous, lean outs and retards.
Lighted Easy Touch Keypad and Display for night use - Easy to use, even with gloves.
Pro/Full Feature - Allows you to save two groups of settings.
Adjustable Transbrake Lockout - Prevents the transbrake from being reapplied down track. Adjustable in 1-second increments.
Scroll Keys Up and Down - Makes adjustments quick and easy.
Independent Line Lock Output - This can be hooked up to prevent "rocking" when applying the transbrake.
Remote Display Dial-In Board Output RD-1 (Patent 6,411,205 B1)
How Late Timer - When taking multiple hits this will tell you which hit you launched on and by how much.
Compatible with all cylinder engines
Combine Starting Line Control and Throttle Stop Control - Single throttle stop can be used for both functions
TB Pause
Cross-Over Compensation (Patent #5,652,468)
Compatible with all ignitions, even magnetos
12 & 16 Volt Compatible
NHRA Accepted
