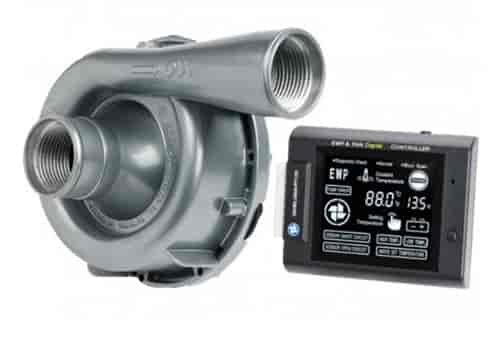

EWP150 Electric Water Pump Aluminum Housing LCD EWP & Fan Digital Controller Combo Kit 24V
- EWP150 Electric Water Pump and LCD EWP & Fan Digital Controller Combo Kit
- Aluminum Housing
- -16 AN Internal Thread
- 39.6 Gallon Per Minute Flow Rate
- 24-Volt
Take total control of your engine cooling with the Davies Craig EWP150 Aluminum Electric Water Pump and LCD EWP/Fan Digital Controller. The Controller will also manage the operation of your Thermatic Fan. The EWP150 (150 litres per minute) pump is suitable for small, medium, large, high-performance and 4WD vehicles. It’s a performance product that improves engine cooling control and capacity whilst giving you more power and torque and improved fuel economy.
The LCD EWP/Fan Digital Controller will manage both the EWP and Thermatic fan operation. The Digital Controller will vary the speed of the EWP in response to the engine’s coolant temperature. Multiple temperature settings are provided on the Controller for either maximum power or fuel efficiency.
The Thermatic Fan/s will be activated automatically once the engine coolant rises 5.4°F (3°C) above the targeted (set) temperature. The Digital Controller will automatically run on for three minutes (or to 14°F / 10°C below the set temperature) after engine shut down, eliminating ‘heat soak’ and extending engine life.
The EWP150 Digital Controller Combo is supplied in a do-it-yourself kit with everything you need for fitment to your vehicle’s engine, including an easy-to-follow DIY instruction booklet.
KIT CONTENTS
DESCRIPTION
UNITS
EWP150 Alloy 24 Volt Pump
1
EWP/FAN LCD Controller 1 Inline Adapter 1 Wiring Harness (10A Fuse) 1 Hose Clamps 4 Rubber Sleeves 2 EWP Hardware Bag 1 Wiring Harness Digital Controller 1 Instructions 1 Technical Specifications EWP150
Voltage 24 Volt Pump Operating Voltage 10V DC to 27V DC Maximum Current 5.5A @ 24V Flow Rate (Max) 150 L/min (39.63 US gal/min) @ 13V DC
Operating Temp. -40° to 130°C (-40° to 266°F) Pump Design Clockwise centrifugal with volute chamber Pump Weight 1,170 grams (2.6 lb)
Pump Material Aluminium (Powder Coated)
Burst Pressure 500 kPa (72.5 psi)
Seal Ceramic face seal Fits Hose Sizes 38mm to 51mm (1-1/2” to 2”) / -16AN O-Ring
Technical Specifications LCD Controller
Voltage Range 12 Volt DC to 29V DC Display LCD Size 70mm (2.76”) x 60mm (2.36”) Maximum current 12A Warning Alarm High & low Temp., Above set temp., Sensor short circuit, Pump error, High & low voltage and Sensor open circuit Targeted Set Temp Range Singular degrees from:
60°C (140°F) to 100°C (212°F)Memory Set & targeted temperature Fan Cut-in Temp 3°C (5.4°F) above the targeted (set) temperature Controller Type PCB with micro-processor
Sensor Type Thermister in housing
Overrun / Shutdown 10°C (14°F) below set/target temperature or 3 minutes
Indicators Temperature, power, EWP, test, fan, high & low temp, voltage, above set temperature (with alarm) Weight 100 grams (3.5 oz)
Dimensions Length = 95mm (3.7")
Width = 130mm (5.1")
Depth = 25mm (1")
