Vehicle Info NeededDARTPART NUMBER: 301-10024361A

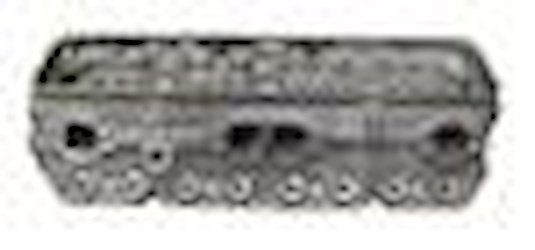

Iron Eagle S/S Small Block Chevy Cylinder Head
$62928
Ships on Mar 09, 2027
Lowest Price GuaranteeCurrently Unavailable
This product is currently not available. Please call customer service for assistance at 1-800-345-4545.
- Iron Eagle S/S Small Block Chevy Cylinder Head
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCylinder Head
BrandDART
Package Height8.0
Package Width10.0
Package Length20.0
Weight54.0 PG
Part CategoryPerformance Parts
Cylinder Head MaterialCast iron
Intake Port LocationStandard
Exhaust Valves IncludedYes
Locks IncludedYes
Retainers IncludedYes
Lock Style7 degree
Guideplates IncludedYes
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedYes
Intake Valve Angle23
Maximum Valve Lift0.51 in (12.954 mm)
Valve Seat MaterialDuctile iron
Heat CrossoverYes
Number Of Springs Per ValveSingle
Valve Springs IncludedYes
Spark Plug StyleStraight
Valve Seat Machine Style4-angle intake/3-angle exhaust
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedYes
Combustion Chamber StyleHeart
QuantitySold individually
Valve Stem Seals IncludedYes
Intake Valve Diameter1.94 in (49.276 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)65
Exhaust Port LocationStandard
Valve Guide MaterialManganese bronze intake/Phosphorous bronze exhaust
Outside Diameter Of Outer Spring1.25 in (31.8 mm)
Combustion Chamber Volume (Cc)67
Machined For O-RingNo
Exhaust Valve Angle23
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleAssembled
Part FitmentSemi Universal
Valve Cover Mounting StyleCenter and perimeter bolt
Valve Stem Seal StylePositive stop
Retainer MaterialSteel
Intake Runner Volume (Cc)165
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.5 in (38.1 mm)
Vendor Part Number10024361A
Package Qty1
Package TypeEA
