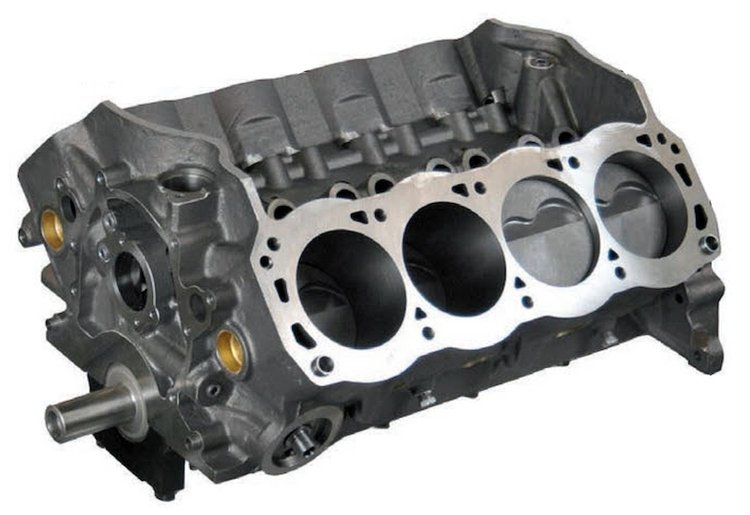

Dart 3213472 Small Block Ford 347 ci. Short Block Features:

• Built on Dart's Special High-Performance (SHP) block for excellent reliability
  • Plate-honed 4.030 in. bore
  • 8.200 in. Deck height
  • 0.875 in. (OEM) lifter bore
  • 4-Bolt steel 302 type main caps
  • Coated cam bearings
  • Brass freeze plugs
• 28 oz. Externally balanced rotating assembly
  • High-quality cast steel crankshaft
  • Forged 4340 I-beam rods with 3/8 in. cap screws
  • Forged Mahle pistons with full floating pins
  • Hastings Moly rings
  • Clevite bearings

Dart 3213472 Small Block Ford 347 ci. Short Block Compression Ratios:

• 10.0:1 w/58 cc cylinder heads and .041 in. compressed head gasket
• 9.5:1 w/62 cc cylinder heads and .041 in. compressed head gasket

Emissions Note:

Thispart is only legal for sale and use on Uncontrolled (Non-Emissions Controlled)Vehicles or on vehicles used solely for the purposes of closed competitionracing.
