Vehicle Info NeededCOMP CAMSPART NUMBER: 249-CL08-503-8

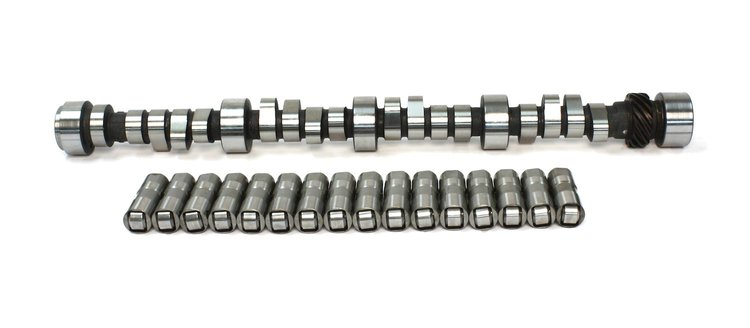

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$85795
1 left in stock
Ships Today
Lowest Price GuaranteeChevy 305-350ci Small Block 1987-98
For engines originally equipped with a hydraulic roller camshaft, except LT1 and LT4.
For engines originally equipped with a hydraulic roller camshaft, except LT1 and LT4.
- Xtreme Energy XR276HR-12 Computer Controlled Hydraulic Roller Camshaft & Lifter Kit
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10
Needs modified TPI w/injectors, plenum, runners, exhaust, 2000+ stall. Requires custom tuning.
Lift: .503''/.510''
Duration: 276°/281°
Lobe Separation Angle: 112°
RPM Range: 1800-5800
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height3.0
Package Width5.5
Package Length26.0
Weight14.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic roller tappet
Grind NumberCS XR276HR-12
Exh. Duration Advertised (Deg)281
Locks IncludedNo
Engine Make/SizeChevy Small Block (262-400)
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.503
Int. Duration @ .050 In. (Deg)224
Assembly Lubricant IncludedNo
Basic Operating Rpm Range1,800-5,800
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.503 in (12.776 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)276
Lobe Separation (Deg)112
Rpm Range1800-5800
Lifter StyleHydraulic roller
Advertised Duration276 int./281 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.51
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.503 int./0.510 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.51 in (12.954 mm)
Advertised Intake Duration276
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift230
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration281
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift224 int./230 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberCL08-503-8
Package Qty1
Package TypeEA
