Vehicle Info NeededCOMP CAMSPART NUMBER: 249-947-16

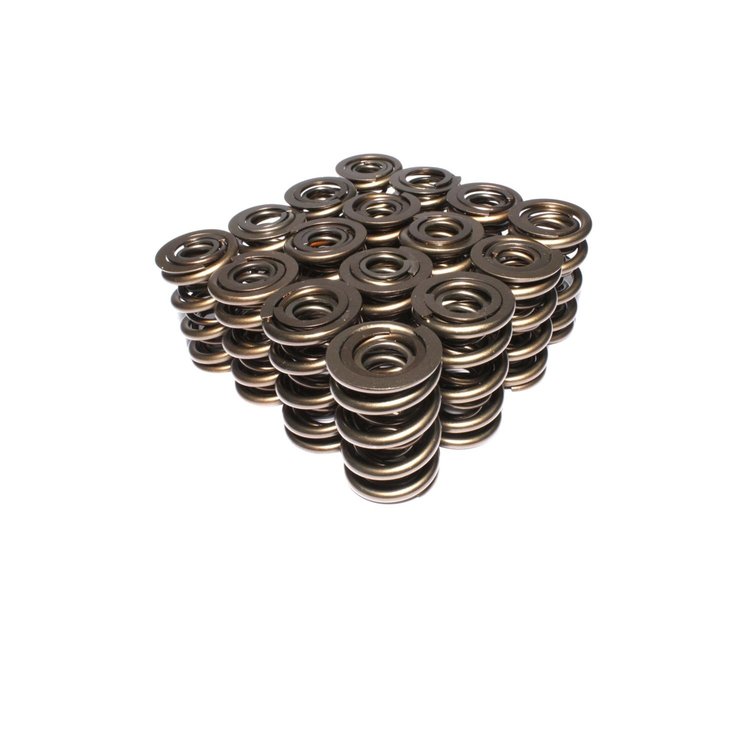

Hi-Tech Triple Valve Springs O.D.: 1.645"
$53595
1 left in stock
Ships Today
Lowest Price GuaranteeHi-Tech Triple Valve Springs
- Hi-Tech Triple Valve Springs
- O.D.: 1.645"
- I.D.: .635"
- Seat Load: 338 lbs/in @ 2.000
- Open Load: 849 lbs/in @1.250
- Coil Bind: 1.145"
- Rate: 681 lbs/in.
- 16/pkg.
- Proprietary Alloy
- Maintain Higher Loads
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Engine Valve Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.9
Package Width3.7
Package Length13.5
Weight7.0 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.145 in (29.083 mm)
Damper Spring IncludedNo
Spring Rate681 lbs./in.
PositionN/A
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)848
Installed Pressure (Lbs.)304
QuantitySold as a set of 16
Installed Height2.05 in (52.07 mm)
Inside Diameter Of Inner Spring0.635 in (16.129 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.645 in (41.8 mm)
Inside Diameter Of Outer Spring1.195 in (30.353 mm)
Inside Diameter0.635 in (16.129 mm)
Spring TypeTriple
Spring Rate (Lbs./In.)681
Part FitmentSemi Universal
Outside Diameter1.645 in (41.8 mm)
Number Of Springs Per ValveTriple
Camshaft TypeHydraulic
Vendor Part Number947-16
Package Qty1
Package TypeEA
