Vehicle Info Needed

COMP CAMSPART NUMBER: 249-911-1

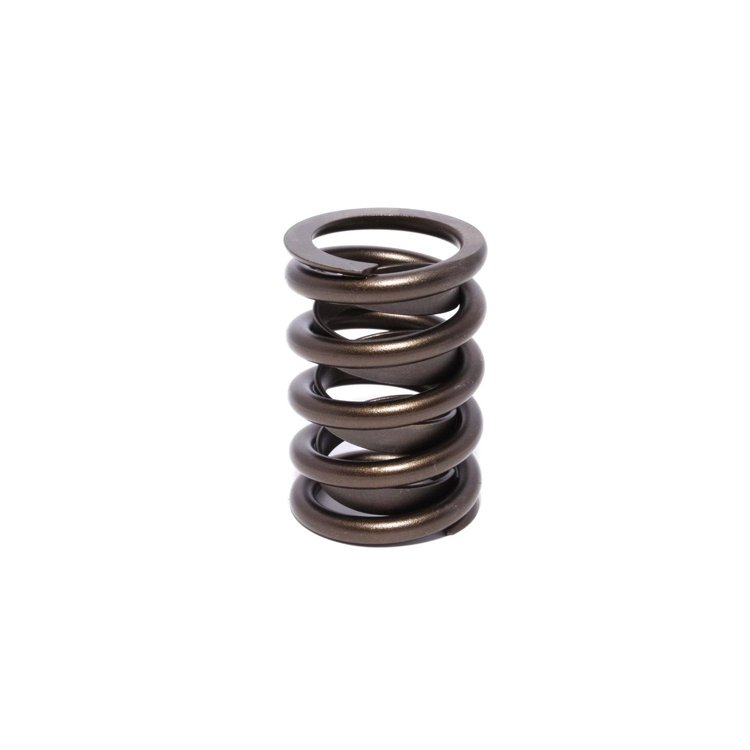

Single Outer Valve Spring Rate: 373 lbs

Name: Single Outer Valve Spring Rate: 373 lbs
Brand: COMP CAMS
SKU: 249-911-1
Price: 13.99 USD
Availability: InStock

^$13⁹⁹

5 left in stock

Ships Tomorrow

Lowest Price Guarantee

Outer

Rate: 373 lbs
1.110'' ID, 1.524'' OD
Seat Load: 122 lbs at 1.900''
Open Load: 309 lbs at 1.400''
Coil Bind Height: 1.200''
With Damper
1/pkg

Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

Engine Valve Spring

Comp Cams Valve Springs are tested under stresses much greater than normal to ensure consistency. Isolating an engine's purpose is first when selecting proper springs. Verify load capacity for optimal performance.

Part TypeValve Spring

Product LineComp Cams Single Valve Springs

BrandCOMP CAMS

Package Height2.0

Package Width2.5

Package Length4.0

Weight0.1 PG

Part CategoryPerformance Parts

CoatedNo

Coil Bind Height1.2 in (30.48 mm)

Damper Spring IncludedYes

Spring Rate373 lbs./in.

PositionOuter

Open Height1.4 in (35.6 mm)

Open Pressure (Lbs.)309

Installed Pressure (Lbs.)122

QuantitySold individually

Installed Height1.9 in (48.26 mm)

Valve Spring StyleStandard

Outside Diameter Of Outer Spring1 in (25.4 mm)

Inside Diameter Of Outer Spring1.11 in (28.194 mm)

Inside Diameter1.11 in (28.194 mm)

Spring TypeSingle

Spring Rate (Lbs./In.)373

Part FitmentSemi Universal

Outside Diameter1.525 in (38.7 mm)

Number Of Springs Per ValveSingle

Camshaft TypeHydraulic

Vendor Part Number911-1

Package Qty1

Package TypeEA
