Vehicle Info NeededCOMP CAMSPART NUMBER: 249-624-524-13

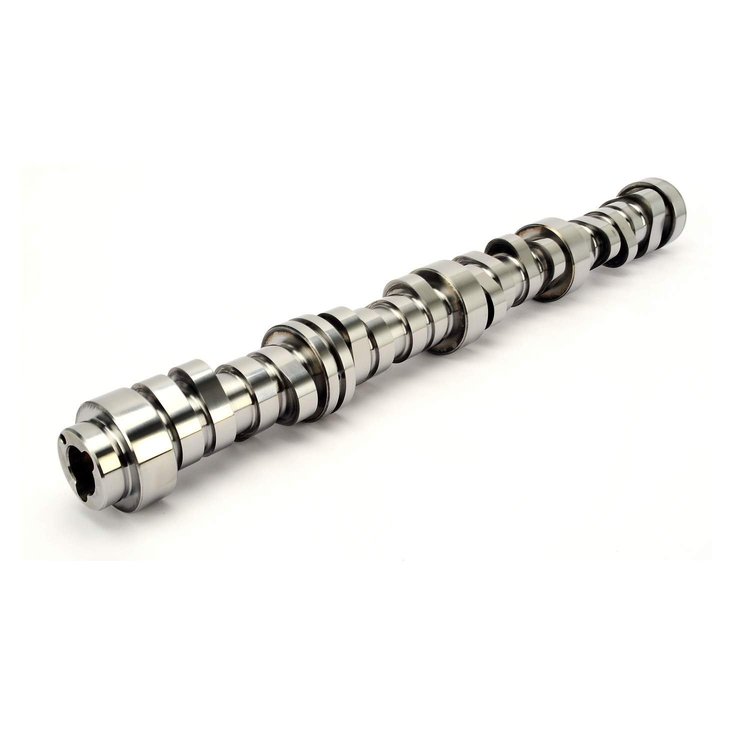

XFI AFM Hydraulic Roller Camshaft GM LT1, GEN V 2014 Lift: .572"/.529"
$60395
Ships on Sep 03, 2026
Lowest Price GuaranteeXFI AFM Hydraulic Roller Camshafts W/ VVT & AFM 2014
- XFI AFM Hydraulic Roller Camshaft
- Lift: .572"/.529"
- Duration: 270°/282°
- Lobe Separation Angle: 117°
- RPM Range: 1800-6900
- Strong Power Gains
- Smooth Idle
LT1; GM; LT4; Corvette; AFM; Camaro; Silverado; Suburban; Tahoe
Great all around performance and best choice for mildly modified LT1 applications with AFM enabled.
GM LT1, GEN V 2014
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
- Right from the factory, the GM LT1/Gen V engine boasts a surprisingly efficient induction design, reduced weight and impressive power output. As the leading developer of high performance LT1/Gen V valve train technology, Comp Cams has engineered a full line of products proven to release the incredible horsepower and torque hidden inside while never sacrificing ever-critical reliability.Features:
- Newest and quickest lobe profiles; provide a terrific increase in performance
- Tuned for use in EFI applications where extra air flow signal through the carburetor is not required (feature wider lobe separation without loss of responsiveness)
- Work well with aftermarket cylinder heads & feature high lift
Part TypeCamshaft
Product LineComp Cams XFI Hydraulic Roller Camshafts For GM LT1 /Gen V Engines
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight8.64 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic roller tappet
Exh. Duration Advertised (Deg)282
Engine Make/SizeChevy LS Series
Intake Valve Lift With Factory Rocker Arm Ratio (I0.572
Int. Duration @ .050 In. (Deg)218
Basic Operating Rpm Range1,800-6,900
Intake Valve Lift0.572 in (14.529 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)270
Lobe Separation (Deg)116
Rpm Range1800-6900
Advertised Duration270 int./282 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.529
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.572 int./0.529 exh.
QuantitySold individually
Exhaust Valve Lift0.529 in (13.437 mm)
Advertised Intake Duration270
Intake Duration At 050 Inch Lift218
Exhaust Duration At 050 Inch Lift230
Advertised Exhaust Duration282
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift218 int./230 exh.
Valve Springs RequiredNo
Vendor Part Number624-524-13
Package Qty1
Package TypeEA
