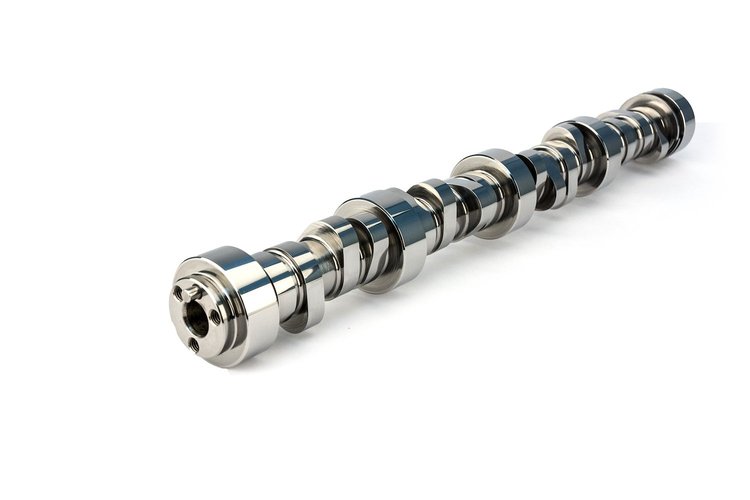

XFI XE-R Hydraulic Roller Camshaft
GM Gen III/LS1/LS2/LS6 1997-PRESENT (Three-Bolt)
• Lift: .595''/.598''
• Duration: 281°/283°
• Lobe Separation Angle 112°
• RPM Range: 2400-7200

  Xtreme Energy XE-R design for standard displacement LS6 and LS1.



  Operating Range:	2400-7200 RPM
  Duration Advertised:	281° Intake / 283° Exhaust
  Duration @ .050':	232° Intake / 234° Exhaust
  Valve Lift w/1.7 Rockers:	.595' Intake / .598' Exhaust
  Lobe Separation Angle:	112°

  GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed


  Xtreme Energy XE-R design for standard displacement LS6 and LS1.


Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
