Vehicle Info NeededCOMP CAMSPART NUMBER: 249-26915-16

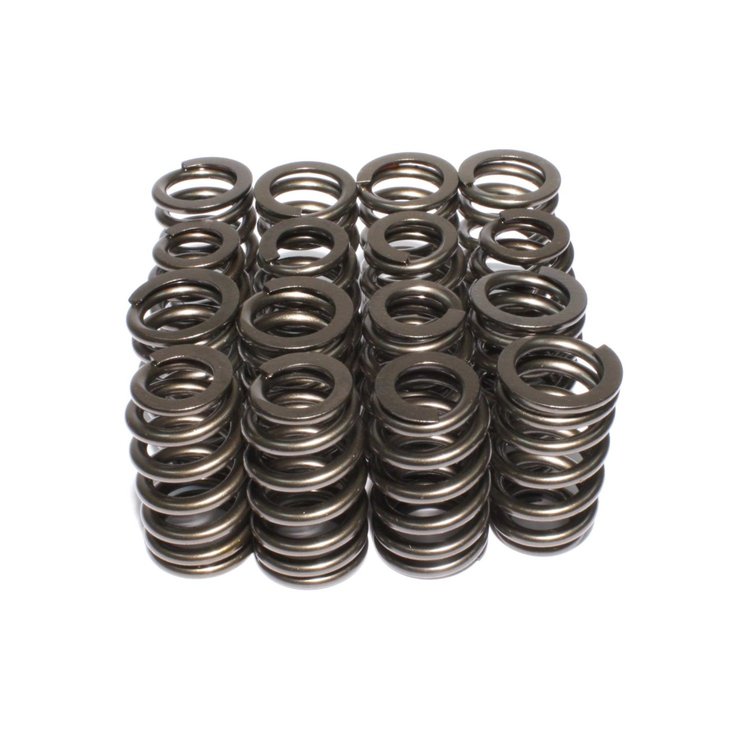

Beehive Valve Spring Chevy LS1/LS2/LS6
$21676$270.95You Save$54.19
3 left in stock
Ships Today
Lowest Price GuaranteeGM Gen III/IV LS
- Beehive Valve Spring
- Chevy LS1/LS2/LS6
- O.D. Base: 1.290
- 16/pkg
Designed for hydraulic roller cams - .600" maximum lift, 1.290" O.D.
- Originally designed for LS1, LS2, and LS6 engines
- Will work in 5.7L Hemi engine with Part #249-761 or #249-762 retainer as well as many other engine combinations.
Specs - OD: Top 1.055" Bottom 1.290"
- ID: Top .650" Bottom .885"
- Seat Pressure: 105 lbs @ 1.800'
- Open Pressure: 293 lbs @ 1.200'
- Coil Bind: 1.100"
- Spring Rate: 313 lbs/in
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.4
Package Width2.9
Package Length10.3
Weight2.75 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.14 in (28.956 mm)
Damper Spring IncludedNo
Spring Rate313 lbs./in.
PositionN/A
Open Height1.2 in (30.5 mm)
Open Pressure (Lbs.)293
Installed Pressure (Lbs.)105
QuantitySold as a set of 16
Installed Height1.8 in (45.72 mm)
Valve Spring StyleBeehive
Outside Diameter Of Outer Spring1.29 in (32.8 mm)
Inside Diameter Of Outer Spring0.65 in (16.51 mm)
Inside Diameter0.660/0.885
Spring Rate (Lbs./In.)313
Part FitmentSemi Universal
Outside Diameter1.29 in (32.8 mm)
Number Of Springs Per ValveSingle
Camshaft TypeOEM
Vendor Part Number26915-16
Package Qty1
Package TypeEA
