Vehicle Info NeededCOMP CAMSPART NUMBER: 249-26094-16

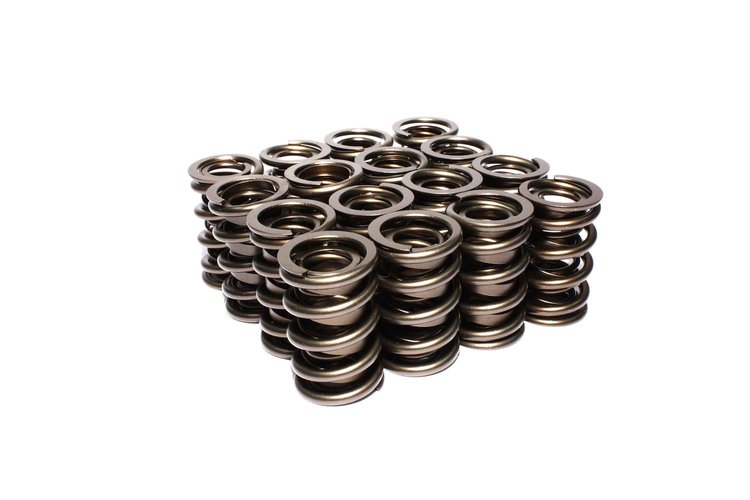

Dual Valve Springs Outer Spring O.D.: 1.564 in.
$39195
2 left in stock
Ships Today
Lowest Price Guarantee1.564 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.564 in.
- Outer Spring I.D.: 1.127 in.
- Inner Spring I.D.: 0.742 in.
- Seat Load: 178lbs
- Coil Bind: 1.200 in.
- Spring Rate: 454lbs/in.
- With damper
- Set of 16
- Hi-Tech Oval Track
- Dyno And Track Testing
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.9
Package Width3.9
Package Length13.5
Weight6.0 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.165 in (29.591 mm)
Damper Spring IncludedYes
Spring Rate445 lbs./in.
PositionN/A
Open Height1.3 in (33 mm)
Open Pressure (Lbs.)441
Installed Pressure (Lbs.)176
QuantitySold as a set of 16
Installed Height1.9 in (48.26 mm)
Inside Diameter Of Inner Spring0.752 in (19.101 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.55 in (39.4 mm)
Inside Diameter Of Outer Spring1.13 in (28.702 mm)
Inside Diameter0.752 in (19.101 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)445
Outside Diameter1.55 in (39.4 mm)
Number Of Springs Per ValveDual
Camshaft TypeOEM
Vendor Part Number26094-16
Package Qty1
Package TypeEA
