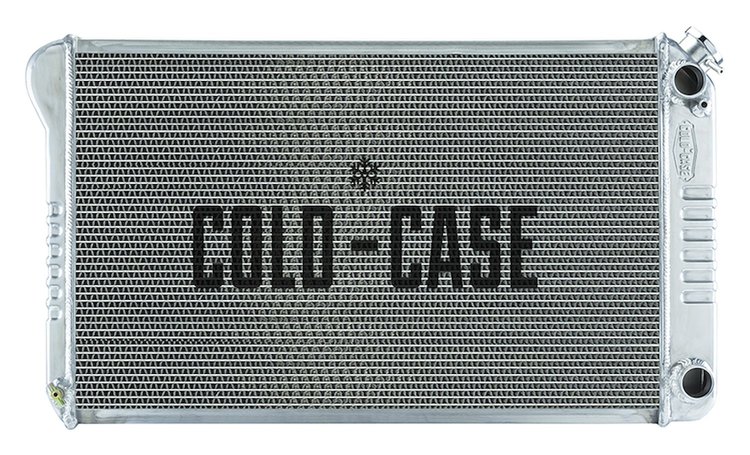

Aluminum Performance Radiator 1968-1972 GM A-Body
InfoVehicle Info Needed
COLD CASE RADIATORSPART NUMBER: 359-GMA546A

Aluminum Performance Radiator 1968-1972 GM A-Body

$43654
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

GM A-Body
Aluminum Performance Radiator
  • 1968-1972 GM A-Body w/LS Swap
  • 18.400 in. H x 28.500 in. W x 3 in. D

    Cold Case Radiators GMA546A Features:

    1968-1972 GM A-Body with LS Swap Aluminum Performance Dual Flow Radiator. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.100 percent TIG weldedAll Aluminum(2) 1.25 inch TubesPolished OE style tanks16 fins per inchCorrugated fins that give more surface area and more thermal transferPressure testedDual Flow DesignDirect fitment for 68-72 A-Body LS SwapsOld Part Number: RPE546ARadiator SpecsCore Height 18.4 inchCore Width 28.5 inchOverall Height 18.82 inchOverall Width 34.21 inchOverall Thickness 3 inchUpper Hose 1.25 inchLower Hose 1.5 inchTubes (2) 1.25 inch Tubes
      • Part TypeRadiator
      BrandCOLD CASE RADIATORS
      Package Height7.5
      Package Width22.0
      Package Length37.0
      Weight24.0 PG
      Part CategoryPerformance Parts
      Overall Thickness3 in (76.2 mm)
      Overall Height18.875 in (479.4 mm)
      Outlet Size1.5 in (38.1 mm)
      Radiator Cap IncludedYes
      Radiator MaterialAluminum
      Inlet Size (In.)1.25
      Core Height18.5 in (469.9 mm)
      Core Width28.5 in (723.9 mm)
      Row Quantity2
      Overall Width34.25 in (870 mm)
      Tube Size1.25 in (31.8 mm)
      Fan IncludedNo
      Transmission CoolerYes
      Part FitmentSemi Universal
      Radiator StyleCrossflow
      Vendor Part NumberGMA546A
      Package Qty1
      Package TypeEA
      No Questions
      No Reviews
