Vehicle Info NeededCOLD CASE RADIATORSPART NUMBER: 359-CHC547AK

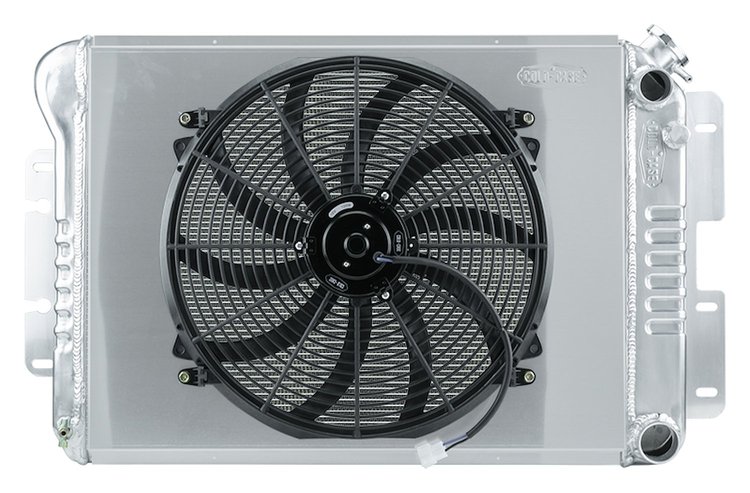

Aluminum Performance Radiator with Fan 1967-1969 Chevy Camaro & Pontiac Firebird
$65354
1 left in stock
Ships Today
Lowest Price GuaranteeGM F-Body
Aluminum Performance Radiator1967-1969 Chevy Camaro & Pontiac Firebird w/LS Swap Includes Electric Fan & Shroud Kit 16.850 in. H x 23 in. W x 3 in. D
Cold Case Radiators CHC547AK Features:
67-69 Camaro/Firebird LS SWAP Aluminum Radiator And 16 Inch Fan Kit. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.100 percent TIG weldedFan Diameter 16 InchAll Aluminum(2) 1.25 inch TubesPolished OE style tanks16 fins per inchCorrugated fins that give more surface area and more thermal transferPressure testedDual Flow DesignDirect fitment for 67-69 F-Body cars with LS motorsOld Part Number: RPE547AKRadiator SpecsCore Height 16.85 inchCore Width 23 inchOverall Height 19 inchOverall Width 30 inchOverall Thickness 6 inchUpper Hose 1.22 inchLower Hose 1.37 inchTubes (2) 1.25 inch TubesReady-Fit GM Radiators
Cold Case high-quality replacement radiators for GM vehicles have two oversized rows that perform just as well as traditional 3 or 4 row radiators. Each ready-fit aluminum radiator is made to factory specs, TIG-welded, and features OEM stamping. When replacing your radiator, Cold Case will keep your GM car or truck engine running cool.
Part TypeRadiator
Product LineCold Case Aluminum Radiators for GM Vehicles
BrandCOLD CASE RADIATORS
Package Height16.5
Package Width27.0
Package Length36.0
Weight48.0 PG
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height19 in (482.6 mm)
Wiring IncludedNo
Radiator Cap IncludedYes
Fits67-69 F-Body LS Swap 16 in.
Shroud IncludedYes
Universal FitNo
Transmission TypeManual
Inlet Size (In.)1.25
IncludesIncludes radiator, fans and shroud
Core Width23 in (584.2 mm)
Row Quantity2
Overall Width30 in (762 mm)
Tube Size1.25 in (31.8 mm)
Transmission CoolerNo
FinishPolished
Radiator StyleCrossflow
Blade MaterialCurved Nylon
Outlet Size1.375 in (34.9 mm)
Fan Quantity1
Radiator MaterialAluminum
Vehicle TypeCar
Fan Diameter (In.)16 in.
MaterialAluminum
Cylinders8 Cylinder
Max Fan Cfm2800 CFM
Core Height16.85 in (427.99 mm)
Thickness6.75 in.
Fan IncludedYes
Part FitmentSemi Universal
Vendor Part NumberCHC547AK
Package Qty1
Package TypeEA
No Questions
No Reviews
