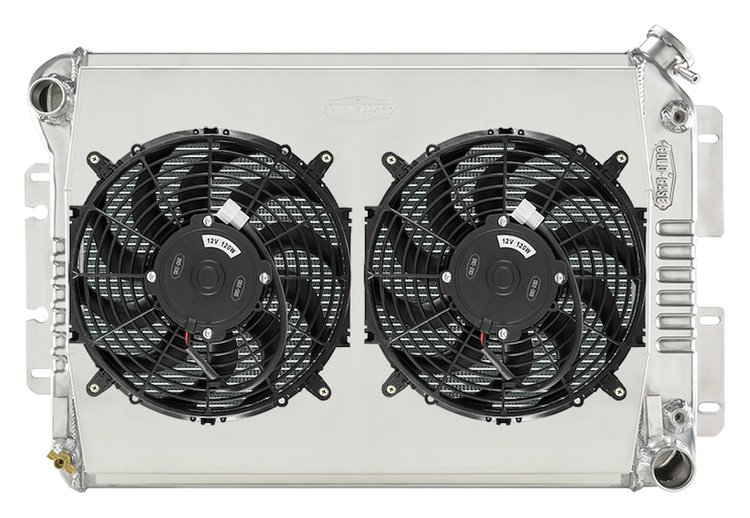

Aluminum Performance Radiator with Fan and Shroud Kit 1967-1969 GM F-Body Big Block Engine, Automatic Transmission
InfoVehicle Info Needed
COLD CASE RADIATORSPART NUMBER: 359-CHC11ASK

Aluminum Performance Radiator with Fan and Shroud Kit 1967-1969 GM F-Body Big Block Engine, Automatic Transmission

$71454
5 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

GM F-Body
Aluminum Performance Radiator, Fan and Shroud Kit
  • 1967-1969 GM F-Body with Big Block Engine
  • Fits Automatic Transmission
  • Includes:
    • 2-Row Performance Aluminum Radiator
    • Dual 12 in. Electric Fans
    • Aluminum Fan Shroud

      Cold Case CHC11ASK

      Features:

      • 100% TIG-welded construction
      • (2) 1.250 in. crossflow cooling rows
      • Polished OE-style end tanks
      • Corrugated cooling fins provide a larger surface area and better thermal heat transfer - (16) fins per inch
      • Trans cooler fitting size: 5/16 in. inverted flare
      • The dual cooling fans flow 1,400 cfm each

      Notes:

      • Also fits 1968-1971 Chevy Nova big block engine models with bracket-style mounted radiators
      • Radiator cap and dual fan wiring harness Not included
    • Part TypeRadiator
    BrandCOLD CASE RADIATORS
    Package Height16.0
    Package Width26.0
    Package Length36.0
    Weight48.0 PG
    Part CategoryPerformance Parts
    Overall Thickness6.25 in (158.8 mm)
    Overall Height18.5 in.
    Wiring IncludedNo
    Radiator Cap IncludedNo
    Shroud IncludedYes
    Fins Per Inch16
    Shroud MaterialAluminum
    Outlet Quantity1
    Inlet LocationDriver side
    Universal FitNo
    Upper Hose1.50 in.
    Transmission TypeAutomatic
    Inlet Size (In.)1.5
    Amp Draw6.85 Avg
    Core Width23 in.
    Row Quantity2
    Overall Width27.5 in.
    Tube Size1.25 in (31.8 mm)
    Radiator FinishPolished
    Inlet Quantity1
    Transmission CoolerYes
    Maximum Fan Cfm1,400 cfm
    Shroud ColorNatural
    FinishPolished
    Radiator StyleCrossflow
    Blade MaterialCurved Nylon
    Outlet Size1.75 in (44.5 mm)
    Fan Quantity2
    Radiator MaterialAluminum
    Drain Valve IncludedYes
    Vehicle TypeCar
    QuantitySold as a kit
    Fan Diameter (In.)12 in.
    MaterialAluminum
    Max Fan Cfm3200 CFM
    Core Height16.85 in.
    Thickness6.75 in.
    Lower Hose1.75 in.
    Fan Diameter12 in (304.8 mm)
    Mounting Brackets IncludedYes
    Outlet LocationPassenger side
    Fan IncludedYes
    Vendor Part NumberCHC11ASK
    Package Qty1
    Package TypeEA
