Clear View Filtration 445-115 Features:

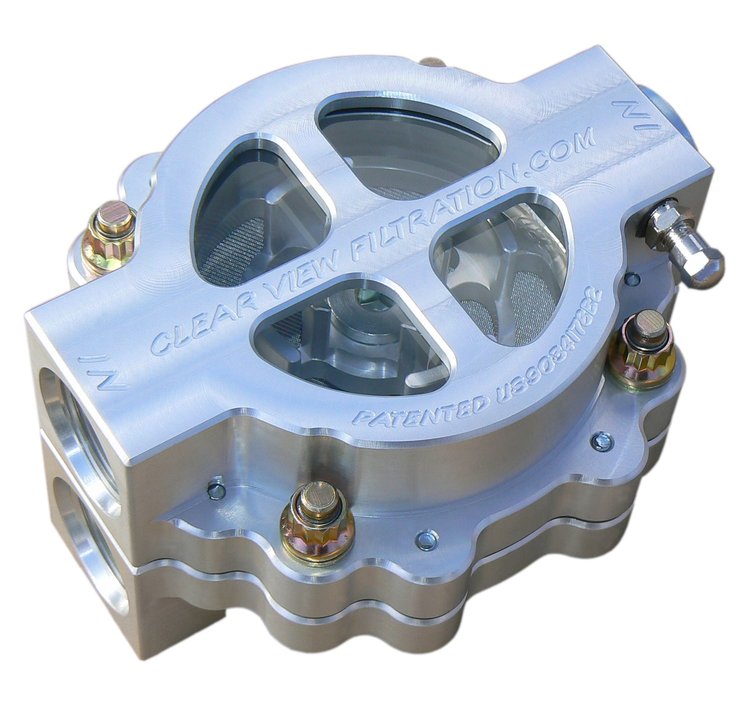

Dry-sump See-Through Filter Assemblies are designed to be mounted between the Dry-sump oil pump and the oil tank on a #16 scavenge line. Uses the coarser 115 micron mesh because ofthe lower pressure on the scavenge side of the oil pump even when running 50 weight or lighter oil. Also for applications where the oil tank has a flat bottom and running 50 weight oil. Flat bottom unlike tapered bottom tanks particles will settle to the bottom and may not be sucked through the pressure side of the oil pump for inspection. Tapered bottom tanks can run the See-Through filters with or without as crew-on disposable filter on the pressure side between the Dry-sump oil pump and the engine inlet oil port.

• Oil Filter Style: Inline
• Finish: Clear Anodized
• Inlet Port Size: 16 AN O-ring
• Outlet Port Size: 16 AN O-ring
• Smallest Particle Filtered: 115 Microns
• Filter Bypass Relief Valve: No
• Anti-Drainback Valve: No
• Filter Height: 3.5 in.
• Filter Length: 6 in.
