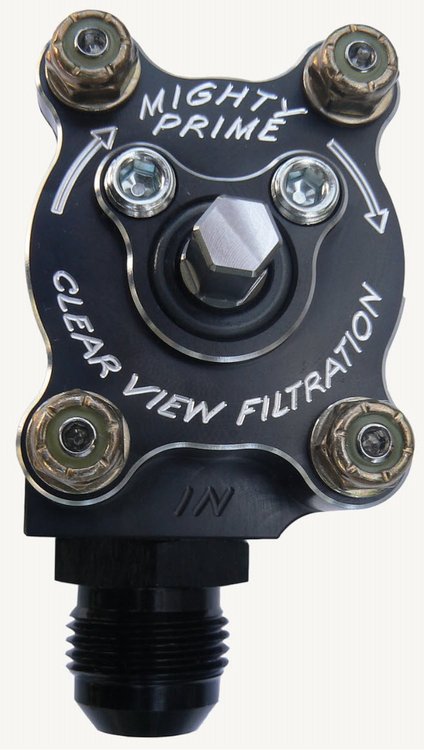

Clear View Filtration 1000-6-B Mighty Prime High-Pressure Oil Priming System Includes:

• Completely assembled Mighty Prime with -10 inlet fitting and one-way check valve installed
• Primer mounting bracket with mounting bolts and directions
• -12 O-Ring to -8 AN fitting

Clear View Filtration 1000-6-B Mighty Prime High-Pressure Oil Priming System Features:

• Easily prime your oil system with a 5/16 in. socket and a cordless drill
• Recommended for all Gasoline and Alcohol engines
• Also recommended for pickup diesel engines, including Cummins, Duramax, and Power Stroke
• Reduces engine part wear and failures by allowing high-pressure priming without running the engine
• Small but powerful unit generates pressure comparable to engine start-up levels
• System mounts directly to the vehicle
• Draws oil from the oil pan or a dry sump tank using a -10 hose

• Requires a -10 fitting (not included) welded to the oil pan
• Oil is drawn from the pan using a -10 line (not included) into the Primer's side inlet fitting
• Oil is pumped through the Primer body and exits via the one-way check valve on the bottom
• A -8 line (not included) runs from the check valve to an unused port in the top of the See Through Filter assembly
• One-way check valve prevents oil backflow when the engine is running
• Includes a -12 O-Ring Boss to -8 AN fitting for the filter inlet port
• Compatible with any filter system

• Oil is drawn from the dry sump tank using a -10 line into the Primer’s side inlet fitting
• A -10 fitting may need to be welded onto the tank if no extra port exists
• Oil is pumped through the Primer and exits through the bottom check valve
• A -8 line routes oil from the check valve to the unused port in the filter top
• Includes a -12 O-Ring Boss to -8 AN fitting for the filter inlet port
• If both inlet ports are in use, a T-fitting must be plumbed into one of the inlets or feed lines

• This high-pressure, high-volume Primer can empty 4 or more quarts of oil from the tank
• Always warm up the engine after priming before running or dyno testing
• Never run the Priming Pump while the engine is running – it may cause damage

• The system can be mounted remotely to suit any engine bay layout
• Must feed the inlet side of the main filter system
• Ensure proper oil flow direction through disposable filters to avoid damage
• Never plumb into the block oil galley after the disposable filter
• Primer must be installed before the disposable filter on the unfiltered oil side
• If no block plug is available before the filter, switch to a remote filter system

• Bracket mounts to the bottom of the Mighty Prime housing and a 4 in. Clear View Filter using supplied bolts
• Mounts the Primer next to the filter, extending approx. 2.25 in. from the filter’s edge
• If not mounting to a Clear View Filter, user can fabricate tabs to use the bracket alone
• Clear View Filtration Part 470 Bracket (sold separately) can be added for remote mounting
