Vehicle Info NeededBell Housing Kit Allows T56 Super Magnum Transmission To Bolt To Any Gen III/IV LS Engine or Gen V LT Engine
Ships on Sep 14, 2026

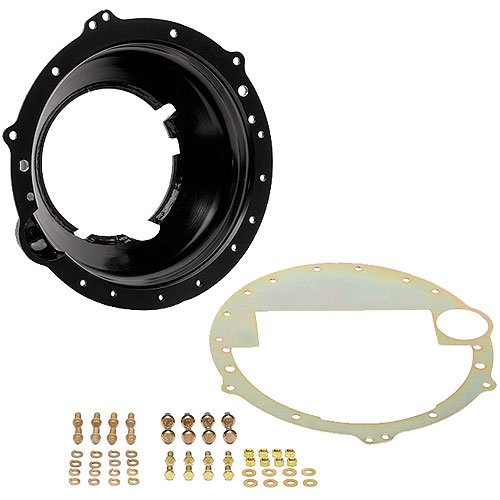

Lowest Price Guarantee- Bell Housing Kit
- Allows T56 Super Magnum Transmission To Bolt To Any Gen III/IV LS Engine or Gen V LT Engine
- SFI Steel
- 5.555" Deep
- Includes Block-Saver Plate And Hardware
- Clutch kit not included.
- Designed for a hydraulic concentric slave cylinder release bearing.
A Transmission for Those Who Accept Only the Best
Able to withstand 700 ft/lbs torque while providing unbelievably crisp shifts, the Super Magnum T56 Transmission is the kingpin of Tremec's high-performance lineup. No other manual transmission offers as much combined strength, ease of use, and versatility as the T56 Magnum. This high-torque capacity TREMEC six-speed manual is specially designed for custom, retro-fit installations with Chevrolet Performance crate engines. The exterior case similar to fourth-generation F-body transmission with the stronger, high-capacity gear sets, input shaft and output shaft used in the TREMEC TR6060. It also features a 40-tooth reluctor ring that's necessary for use with electronic vehicle speed sensors used with Chevrolet Performance controllers.
Show More
Features:
- 700 lb.-ft. Maximum Torque Capacity
- 26-Spline Input Shaft
- 31-Spline Output Shaft
- Gear Ratios: 2.66 (1), 1.78 (2), 1.30 (3), 1.00 (4), 0.80 (5), 0.63 (6)
- Slip-Yoke Design
- Two-Position Shifter Plate Included, With Third Position Built Into The Transmission
Get your new T56 Magnum on the road with Chevrolet Performance's T56 Super Magnum Installation Kits: bellhousing, flywheel, clutch, clutch release bearing, pressure plate, dust covers, and hardware.
