ST161K All-Aluminum Radiator Kit for Select 1963-1990 GM Fullsize V6/V8 Models [Natural Finish]

Name: ST161K All-Aluminum Radiator Kit for Select 1963-1990 GM Fullsize V6/V8 Models [Natural Finish]
Brand: CHAMPION COOLING SYSTEMS
SKU: 166-ST161K
Price: 804.95 USD
Availability: OutOfStock

^$804⁹⁵

1 left in stock

Lowest Price Guarantee

All-Aluminum Radiator Kit

Select 1963-1990 GM Fullsize V6/V8 Models

Natural Finish

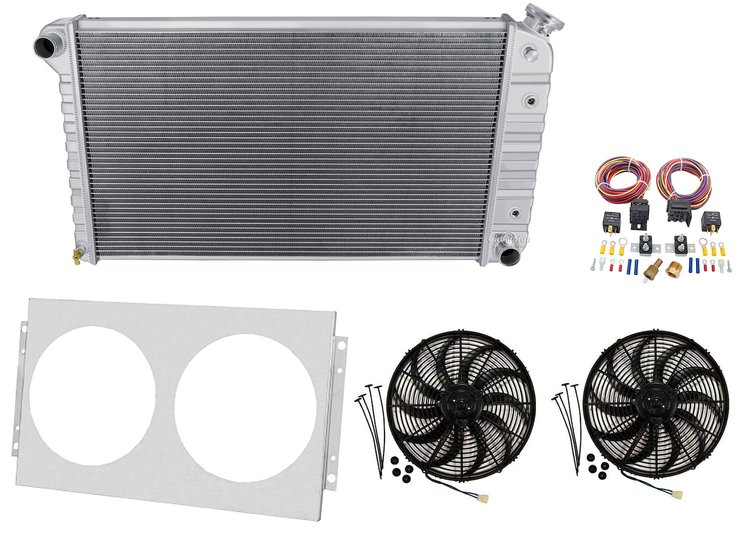

Includes:

Aluminum Radiator
Aluminum Fan Shroud
(2) 14 in. Electric Cooling Fans
Wiring Harness & Relay Kit

Champion Cooling Systems ST161K Kit Features:
- Champion Cooling Systems All-Aluminum Radiator [Natural Finish] ST161
- Champion Cooling Systems Aluminum Fan Shroud FS161
  - Aluminum Fan Shroud
  - Fits 166-(EC/CC/MC)161 Radiators
  - Overall Dimensions: 17 in. H x 28-1/4 in. W
  - Number Of Fans: 2
  - Fan Size: 14 in.
- (2) Champion Cooling Systems Swept-Blade 14 in. Electric Cooling Fan CCFK14
  - Swept-Blade Electric Cooling Fan
  - Size: 14 in.
  - CFM: 1,200
  - Thickness: 3.500 in.
  - Amp Draw: 12.0
  - Nylon Mounting Kit Included

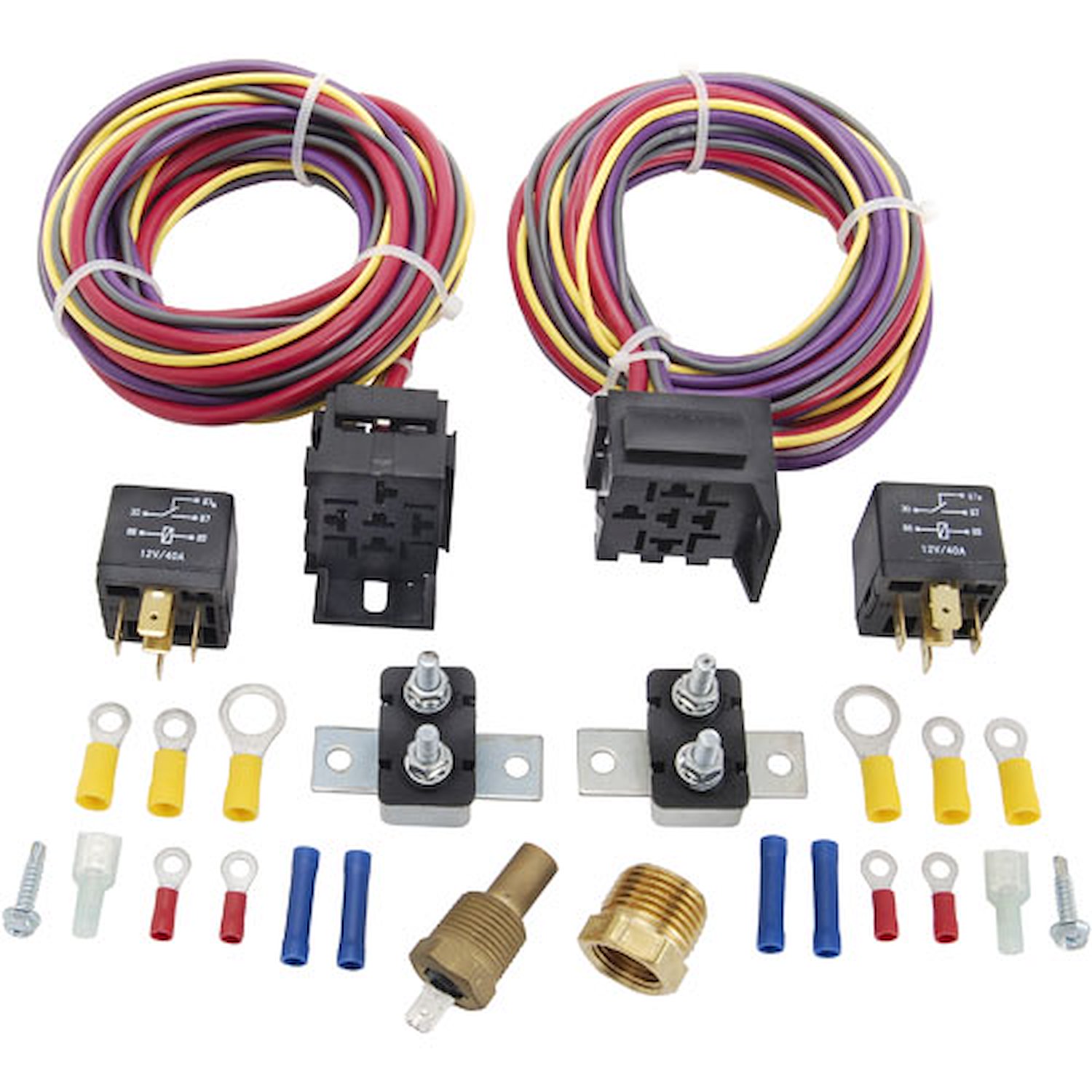

- JEGS Dual Fan Wiring Harness & Relay Kit 30 Amp [185-degrees on 170-degrees off] 555-10570
  - (1) 185-degrees On / 170-degrees Off Sensor for 180-degree Thermostat
  - (80 in.) 10-18 Ga. High Temp Cross Link Wire
  - (2) 30 Amp Relay
  - (2) 30 Amp Circuit Breaker
  - Hardwares

Stay Cool with Champion Core Radiators

Champion 3-Row Aluminum Radiators utilize brazed-core technology to ensure the highest quality tubing that provides sufficient cooling capacity for approximately 600 to 800-plus horsepower vehicles. Each direct-fit radiator is built with all-welded seams (without epoxy) and comes complete with a standard radiator cap.

When you’re building a vehicle for high performance, you need to build the entire package, and that includes an upgraded cooling system. A 3 row aluminum radiator is a great upgrade for more efficient and robust cooling capacity, and Champion is the right place to find them.

Not all radiators are created equal. Champion’s 3 row radiators feature the highest quality tubing and fins and brazed-core technology; they’re designed for a precise drop-in fit and are built without seams or epoxy. With fitments for vehicles from the 70s all the way back to the 30s, Champion radiators are a perfect choice for a restomod project (and if there’s one weak link in vehicles from the 60s and older, it’s their radiators and cooling systems). Cooling systems for select models include all components – the radiator, shroud, dual electric fans, pigtail, controller and all necessary wiring. An electric fan also has the added benefit of reducing parasitic drag on the engine by eliminating a belt-driven fan.

Champion radiators are also designed with transmission cooler connections, and all are vehicle specific to easily fit with radiator core supports for a true drop-in installation. Champion radiators are designed to deliver cooling capacity for engines up to 600-800 horsepower.

Part TypeRadiator

Product LineChampion 3-Row/Core Aluminum Radiators

BrandCHAMPION COOLING SYSTEMS

Part CategoryReplacement Parts

Overall Height18 5/8 in.

Outlet Size1 1/2 in.

Radiator Cap IncludedYes

Inlet LocationLeft/Driver Side

MaterialAluminum

Mounting TypeSaddle

Core Height17 in.

Core Thickness2 1/4 in.
