![Dual Friction Clutch Kit for 1962-1984 Classic Buick/Chevy/GMC/Pontiac Cars and Trucks [622 ft-lbs]](https://www.jegs.com/images/mini_750/100/183/183-kdf485216.jpg)
CENTERFORCEPART NUMBER: 183-KDF485216

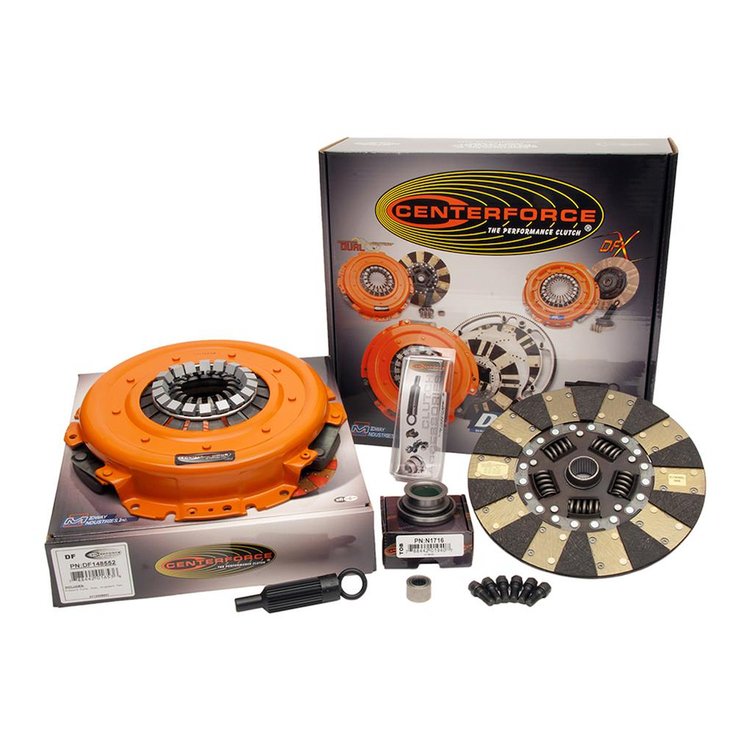

Dual Friction Clutch Kit for 1962-1984 Classic Buick/Chevy/GMC/Pontiac Cars and Trucks [622 ft-lbs]
$60895
1 left in stockGM
Dual Friction Performance Clutch KitFits 1962-1984 Classic Buick/Chevy/GMC/Pontiac Cars and Trucks 622 ft-lbs Torque Capacity 11 in. Dia., 26-Spline Nodular Iron Pressure Plate, Organic/Carbon Composite Disc Sold as a Kit
The Centerforce Dual Friction system pairs a centrifugal-assisted nodular iron pressure plate with a full-face/segmented organic-carbon composite disc, holding extra clamping load at higher RPM without adding pedal effort at idle, for classic Buick, Chevy, GMC and Pontiac cars and C/K trucks from 1962-1984.
Centerforce KDF485216 Features:
- Fits 1962-1984 classic Buick/Chevy/GMC/Pontiac cars and trucks
- 622 ft-lbs torque capacity
- 11 in. disc diameter, 26-spline hub
- Nodular iron pressure plate with full-face/segmented organic-carbon composite disc
- Centrifugal weight assist for RPM-responsive clamping
- Flat flywheel step type, 3-bolt pressure plate pattern
- 1-1/8 in. input shaft diameter
Includes:
- Pressure plate cover and disc
- Throw-out bearing
- Pilot bushing
- Mounting hardware
- Alignment tool
Part TypeClutch Kit
BrandCENTERFORCE
Package Height3.7
Package Width13.8
Package Length13.9
Weight32.6 PG
Part CategoryPerformance Parts
Clutch Bolt Pattern3
Counterweight AssistYes
MaterialNodular Iron Pressure Plate / Full Face and Segmented Organic Friction
Clutch Disc Diameter11 in.
Clutch Bolt Size3/8 - 16 x 0.900 in.
Input Spline Quantity26
Disc TypeFull face/Segmented face
Flywheel Step TypeFlat
Torque Capacity622 ft-lbs
Clutch Bolt TypeShouldered
Input Shaft Diameter1-1/8 in.
Disc MaterialOrganic/Carbon Composite
Part FitmentDirect Fit
Vendor Part NumberKDF485216
Package Qty1
Package TypeEA
