Vehicle Info NeededCANTON RACING PRODUCTSPART NUMBER: 074-15-874

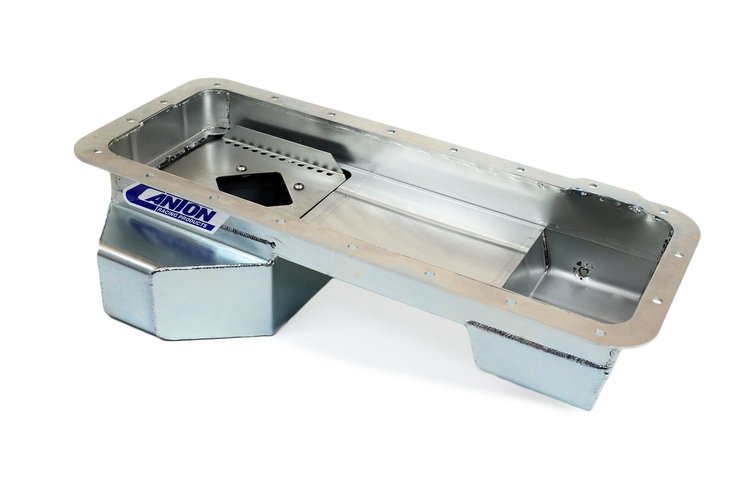

15-874 Street / Strip Oil Pan Ford 332-428 FE
$48900
2 left in stock
Ships Today
Lowest Price GuaranteeBig Block Ford Oil Pans
- Street / Strip Oil Pan
- Ford 332-428 FE
- Rear Sump
- 7 Quarts
This "T" style Ford 332-428 FE rear sump oil pan is is designed for early Mustangs with Rack and Pinion conversion front ends installed, or 79 to 93 Mustang, 80-97 T-Birds, or Rear Sump Cobra Kit Cars. It has a 6" deep, 13" wide by 8" long sump with a 7 quart system capacity. This pan requires 074-15-875 pickup.The Pan Features: - Diamond Shape Road Race Baffle Assembly With Six Trap Doors
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height10.0
Package Width13.9
Package Length26.6
Weight16.17 PG
Part CategoryPerformance Parts
Oil Pan Capacity6 quarts
Dipstick PortYes
Hardware IncludedNo
Dipstick ProvisionNo
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.125 in (104.775 mm)
Gaskets IncludedNo
Sump LocationRear
Capacity7 Quart System Capacity
Kicked OutYes
FinishSilver Plating
Stroker ClearancedYes
BaffledYes
Gasket Or Seal IncludedNo
QuantitySold individually
Material16 Gauge Steel
Oil Pan FinishGold iridited
Drain Plug IncludedYes
Oil Pan Depth6 in (152.4 mm)
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationDriver
Part FitmentSemi Universal
Vendor Part Number15-874
Package Qty1
Package TypeEA
