Vehicle Info NeededCANTON RACING PRODUCTSPART NUMBER: 074-13-330

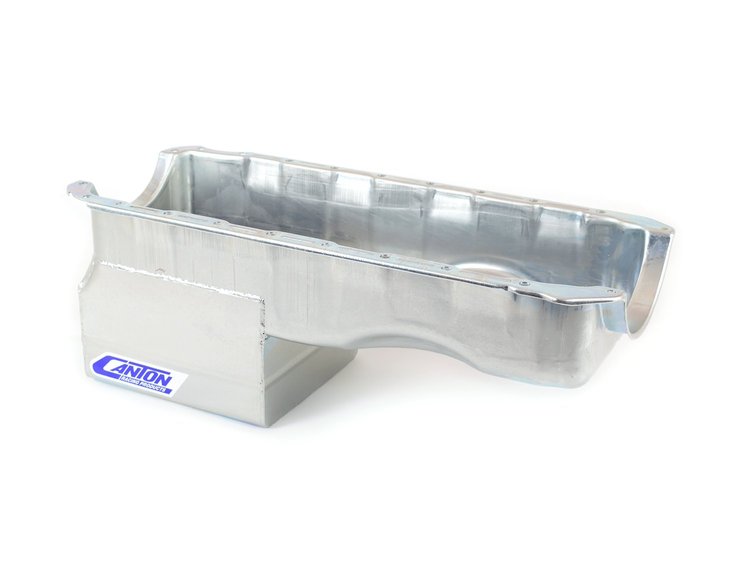

13-330 Drag Race Oil Pan Big Block Chevy Mark 4 Blocks
$52900
2 left in stock
Ships Today
Lowest Price GuaranteeBig Block Chevy Oil Pans
- Drag Race Oil Pan
- Big Block Chevy Mark 4 Blocks
- Clears 4.5" Stroke
- 7 Quarts
This Big Block Chevy bracket drag oil pan is for Mark 4 blocks. It has a 9" deep by 9-1/2" long sump and a 7-quart system capacity. Takes up to a 4.5" stroke with a steel rod. Will work with stock or aftermarket starters.
Features: - Trap Door Baffle
- Competition Oil Recovery System WithWindage Tray & Crank Scraper
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height10.3
Package Width13.9
Package Length26.9
Weight17.23 PG
Part CategoryPerformance Parts
Oil Pan Capacity6 quarts
Dipstick PortYes
Hardware IncludedNo
Dipstick ProvisionYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
Sump Depth9 inches
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.5 in (114.3 mm)
Gaskets IncludedNo
Rear Main Seal Style2-piece
Sump LocationRear
Capacity7 Quart System Capacity
Kicked OutNo
FinishSilver Plating
Stroker ClearancedYes
BaffledYes
Gasket Or Seal IncludedNo
QuantitySold individually
Material16 Gauge Steel
Oil Pan FinishGold iridited
Drain Plug IncludedYes
Oil Pan Depth9 in (228.6 mm)
Crank Scraper IncludedYes
Windage Tray IncludedYes
Dipstick LocationDriver
Part FitmentSemi Universal
Vendor Part Number13-330
Package Qty1
Package TypeEA
