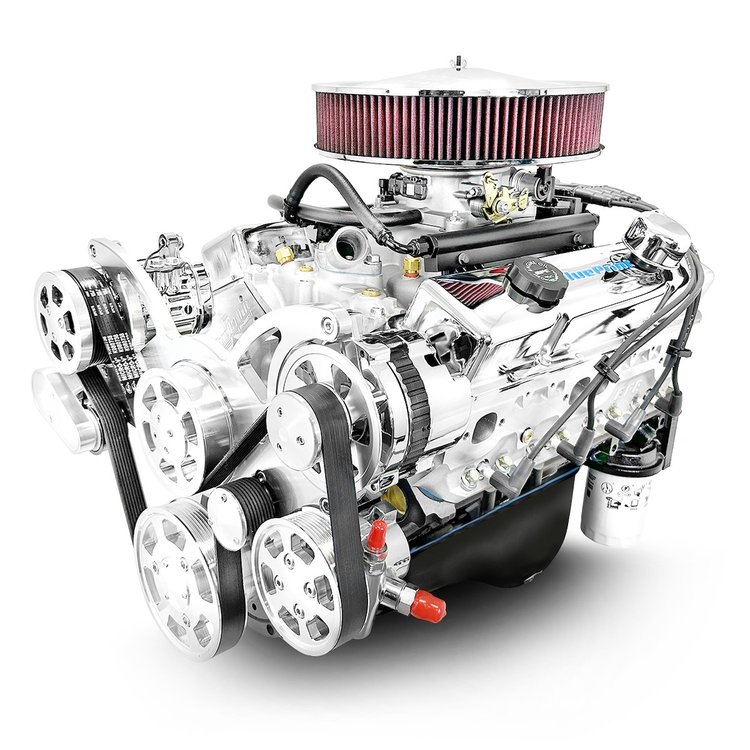

Blueprint Engines BP4002MPFIK 400 ci. Crate Engine:

• 500 Horsepower/500 ft.lbs. Torque
• 10.3:1 Compression Ratio
• Multi-port fuel injection system, complete with ECU and full Wiring Harness, has had extensive calibration and development work
• ECU controls ignition timing, fuel, and installs with 3 simple wired connections
• Computer Balanced Rotating Assembly within 2 grams
• Includes a comprehensive, dyno-generated printout showing Horsepower and Torque

Blueprint Engines BP4002MPFIK 400 ci. Crate Engine Specs:

• Block:
  • NEW Blueprint Cast Iron Block
  • 4-Bolt Main
  • 4.125 in. Bore
  • 1-Piece Rear Main Seal
  • Passenger Side Dipstick
  • Drilled and Tapped for Clutch Linkage
• Rotating Assembly:
  • New BluePrint Forged Crankshaft
  • 3.750 in. Stroke
  • Hypereutectic Pistons
  • Forged 5.700 in. Connecting Rods
  • Internally Balanced Front-Externally Balanced Rear
• Cylinder Heads:
  • BluePrint Aluminum Cylinder Heads HP8103
  • 64 cc Chambers
  • 2.02 in. Intake/1.60 in. Exhaust Valves
• Cam Specs:
  • Hydraulic Roller
  • .553 Intake/.576 Exhaust Lift
  • 236 Intake/242 Exhaust Duration @ .050
  • 106 Degree Lobe Separation
• Ignition Timing:
  • Computer Controlled by Blueprint ECU

Blueprint Engines BP4002MPFIK 400 ci. Crate Engine Also Includes:

• BluePrint Multi-Port Fuel Injection - Self-Learning Electronic Control Unit (ECU)
• Polished Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump
• Single Plane Machined Aluminum Intake Manifold
• Polished Chrome "BluePrint" Engraved Valve Covers
• Polished Chrome BluePrint Air Cleaner
• Satin Aluminum Water Pump
• Spark Plugs and Wires
• Harmonic Balancer
• Timing Cover
• Distributor
• Oil Pan

Blueprint Engines BP4002MPFIK 400 ci. Crate Engine Notes:

• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles
• Fuel Recommendation: 91 Octane

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
