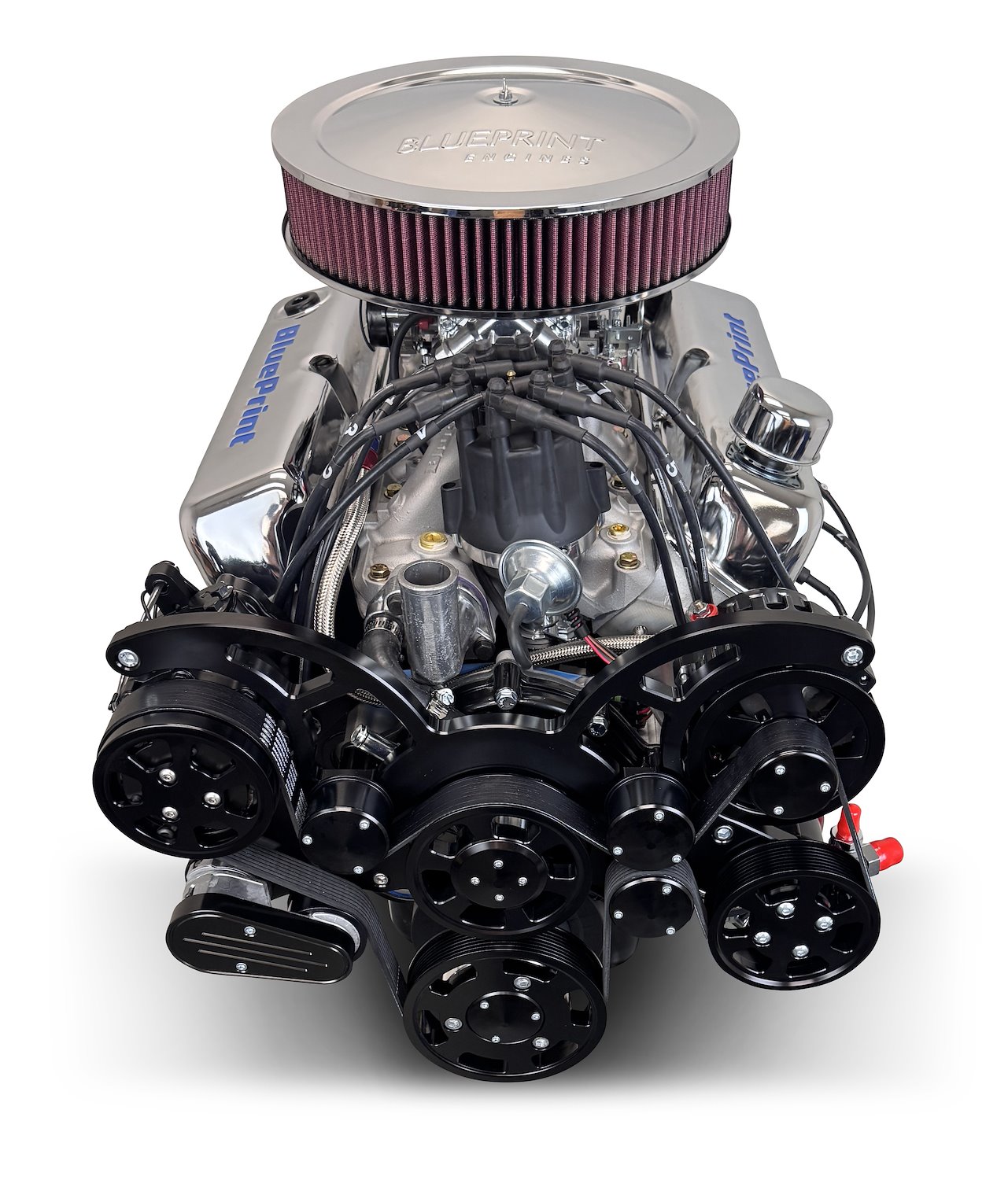

• Deluxe Dressed Engine w/415 HP/415 ft.lbs. TQ
• Black Front Accessory Drive
• Water Pump
• A/C Compressor
• Alternator
• Power Steering Pump
• Dual/Rear Sump Oil Pan

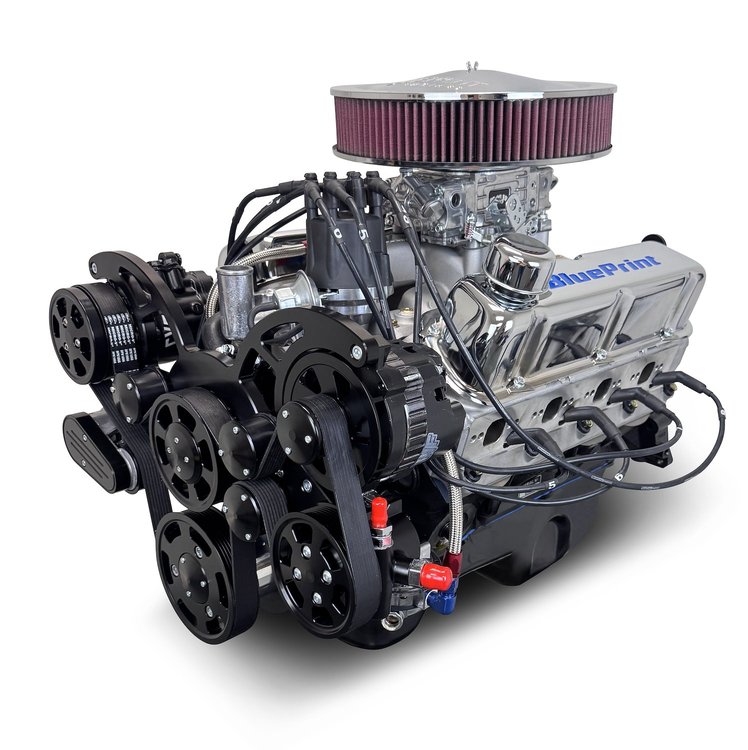

  Blueprint Engines BP3479RCTCKB Ford Small Block Compatible 347 ci. Long Block:

  • Block:
    • BluePrint Engines High-Strength Cast Iron Block
    • Increased Deck Thickness and Strength Webbing
    • Priority Main Oiling
    • Improved Water Jacket Design
    • 4-Bolt Main
    • 4 in. Bore
    • 1-Piece Rear Main Seal
  • Rotating Assembly:
    • Steel Crank Balanced by BluePrint Engines
    • 3.400 in. Stroke
    • Forged 5.400 in. Connecting Rods
    • Forged Pistons
    • 28 oz Externally balanced Front and Rear
  • Cylinder Heads:
    • BluePrint Aluminum Cylinder Heads HP9008
    • Compression Ratio: 10:1
    • 60 cc Chambers
    • 2.02 in. Intake/1.60 in. Exhaust Valves
    • 190 cc Intake/60 cc Exhaust Runners
  • Cam Specs:
    • Cam Type: Hydraulic Roller
    • .543 Intake/.554 Exhaust Lift
    • 218 Intake/226 Exhaust Duration @ .050
    • Lobe Seperation (LSA) 112
    • Firing Order: 1-5-4-2-6-3-7-8
  • Ignition Timing:
    • 10-16 Degrees Initial, 32-34 Total
  • Also Includes:
    • Black Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump
    • Dual/Rear Sump Oil Pan
    • Holley Street Warrior 600cfm Vacuum Secondary Carburetor w/Electric Choke
    • Intake Manifold
    • Distributor
    • Standard Rotation Water Pump
    • Spark Plugs and Wires
    • Harmonic Balancer
    • Thermostat and Thermostat Housing
    • Valve Covers
    • Timing Cover

  Blueprint Engines BP3479RCTCKB Ford Small Block Compatible 347 ci. Long Block Notes:

  • Engine timing cover is designed for standard rotation water pump and pulley kit ONLY

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
