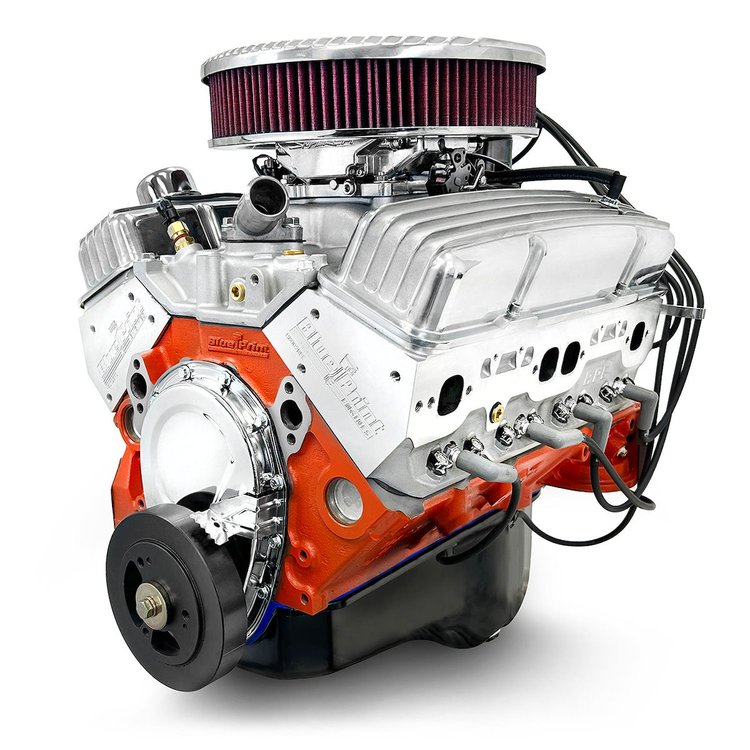

Blueprint Engines BP327CTFV GM Small Block Compatible 327 ci. Crate Engine:

• 350 Horsepower/350 ft.lbs. Torque
• 9.4:1 Compression Ratio
• Computer Balanced Rotating Assembly within 2 grams
• Includes a comprehensive, dyno-generated printout showing Horsepower and Torque

Blueprint Engines BP327CTFV GM Small Block Compatible 327 ci. Crate Engine Specs:

• Block:
  • NEW Blueprint Cast Iron Block
  • 4-Bolt Main
  • 4 in. Bore
  • 1-Piece Rear Main Seal
  • Passenger Side Dipstick
  • Mechanical Fuel Pump Provision
  • Drilled and Tapped for Clutch Linkage
• Rotating Assembly:
  • New BluePrint Forged Crankshaft
  • 3.250 in. Stroke
  • Hypereutectic Pistons
  • Forged 5.700 in. Connecting Rods w/150000 PSI Bolts
  • Internally Balanced Front-Externally Balanced Rear
• Cylinder Heads:
  • BluePrint Aluminum Cylinder Heads H8002DD
  • 64 cc Chambers
  • 2.02 in. Intake/1.60 in. Exhaust Valves
  • 195 cc Intake/75 cc Exhaust Runners
• Cam Specs:
  • Hydraulic Roller
  • .495 Intake/.502 Exhaust Lift
  • 220 Intake/224 Exhaust Duration @ .050
  • 114 Degree Lobe Separation
• Ignition Timing:
  • 32-34 Degrees Total at 3500 RPM

Blueprint Engines BP327CTFV GM Small Block Compatible 327 ci. Crate Engine Also Includes:

• Holley Sniper 2 EFI System
• Under Header Spark Plug Wires (Perfect for Rams Horn exhaust manifolds)
• Small Cap Ready to Run Distributor Equipped with Tach Drive and Coil
• Premium Vintage Valve Covers
• Premium Vintage Air Cleaner
• 6.75 in.Harmonic Balancer
• Spark Plugs
• Rear Sump Oil Pan
• Timing Cover
• Aluminum Intake Manifold
• Thermostat w/Thermostat Housing

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
