Vehicle Info NeededBD DIESELPART NUMBER: 151-1061650

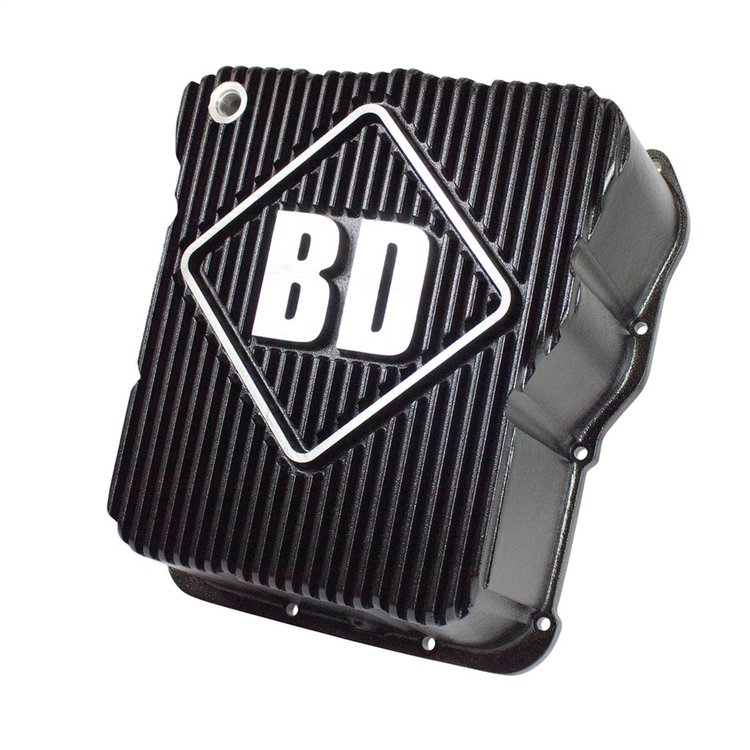

1061650 Deep Sump Transmission Pan 2001-2010 Chevy/GMC Duramax Diesels Allison 1000 3.5 qt. Increase
$43995
Ships on Sep 03, 2026
Lowest Price GuaranteeGM
- Deep Sump Transmission Pan
- 2001-2010 Chevy/GMC Duramax Diesels
- Allison 1000
- 3.5 qt. Increase
These rigid 356T6 Cast Aluminum transmission pans are a great addition to your truck. The increased 3.5 qt capacity will extend the life of your transmission by delivering higher volumes of cool transmission fluid. The rigid Cast Aluminum design will also insure a long lasting seal and hold up in the elements such as off road use or flex from high torque engines. These pans also have a Magnetic Drain Plug and Temperature Sending Unit Port making it much easier to install and aftermarket transmission temperature gauges.
Increased Oil Capacity for Increased Transmission Life
BD Diesel Performance Transmission Oil Pans will cool oil while improving the look of your truck's underbody! These heavy-duty cast aluminum oil pans will protect against flex caused by high torque engines and off road excitement. The rigid cast aluminum design will also help achieve a no-leak seal for years.
Part TypeTransmission Pan
Product LineBD Diesel Performance Transmission Oil Pans
BrandBD DIESEL
Package Height7.6
Package Width14.6
Package Length17.6
Weight17.69 PG
Part CategoryPerformance Parts
QuantitySold individually
MaterialSteel
Bolts/Studs IncludedNo
Drain Plug IncludedNo
Filter IncludedNo
Gaskets IncludedNo
Filter Extension IncludedNo
Trans ModelAllison- 1000 (Auto)5 Speed
Transmission Pan StyleDeep
Transmission Pan MaterialAluminum
Temperature Sender Bung IncludedNo
Transmission Pan FinishBlack wrinkled
Part FitmentDirect Fit
Capacity Increase (Qt.)3.5
Vendor Part Number1061650
Package Qty1
Package TypeEA
