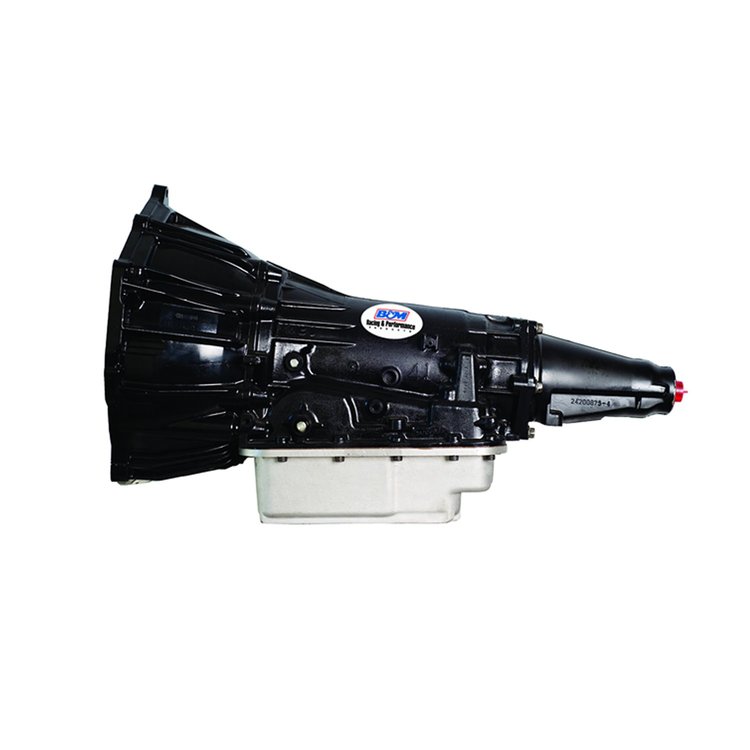

117308 Street/Strip 1998-2006 GM 4L60E Automatic Transmission for GM Gen III/IV LS Engines [2WD]
InfoVehicle Info Needed
B&MPART NUMBER: 130-117308

117308 Street/Strip 1998-2006 GM 4L60E Automatic Transmission for GM Gen III/IV LS Engines [2WD]

$3,99995
Truck Freight
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee
Best Value
Save
$2,14996
Made in USA
4L60E Performance Transmission for Vehicles with 1999-2006 GM LS 4.8L, 5.3L, 6.0L Engines

555-603020

4L60E Performance Transmission for Vehicles with 1999-2006 GM LS 4.8L, 5.3L, 6.0L Engines

$1,84999

GM
Street/Strip Automatic Transmission
  • 1998-2006 GM 4L60E (2WD)
  • Gen III/IV LS Engines
  • Auto Shift Valve Body
  • Max Horsepower: 550
  • Max Torque: 450 ft. lbs.
  • High-Performance Friction Plates
  • Re-Calibrated Valve Body
  • Chrome Std. Depth Pan

    B&M 117308 Street/Strip 1998-2006 GM 4L60E Automatic Transmission:

    • Includes Chrome Standard Depth Transmission Pan
    • 8 Count 3-4 Friction Pack with Koleen Steels
    • All New High Performance Friction Plates
    • All New Solenoids & Wiring Harness
    • Billet Corvette 4th Gear Servo
    • Fully Re-calibrated Valve Body
    • 29 Element Dual Cage Sprag
    • Heavy Duty Beast Sunshell
    • Seven Hole LS Bellhousing
    • Reinforced Input Drum
    • Part TypeAutomatic Transmission
    BrandB&M
    Package Height21.0
    Package Width24.0
    Package Length34.0
    Weight185.0 PG
    Part CategoryPerformance Parts
    Automotive Item GradeHigh Performance
    Flexplate Shield Built InNo
    Transmission Drive TypeRWD
    Pan TypeStock
    First Gear Ratio (Automatic Transmissions)3.06
    QuantitySold individually
    Yoke StyleSlip On
    Dipstick IncludedNo
    Valve Body StyleAutomatic
    Trans-Brake IncludedNo
    Tailshaft Length7.5 in (190.5 mm)
    Input Spline Quantity30 in (762 mm)
    Trans ModelGM- 4L60E (Auto)4 Speed
    Fluid Fill LocationCase
    Case FinishBlack powdercoated
    Part FitmentSemi Universal
    Case MaterialAluminum
    Transmission Shield Built InNo
    Safety RatingNot SFI Approved
    LockupYes
    Vendor Part Number117308
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
