Made in USA

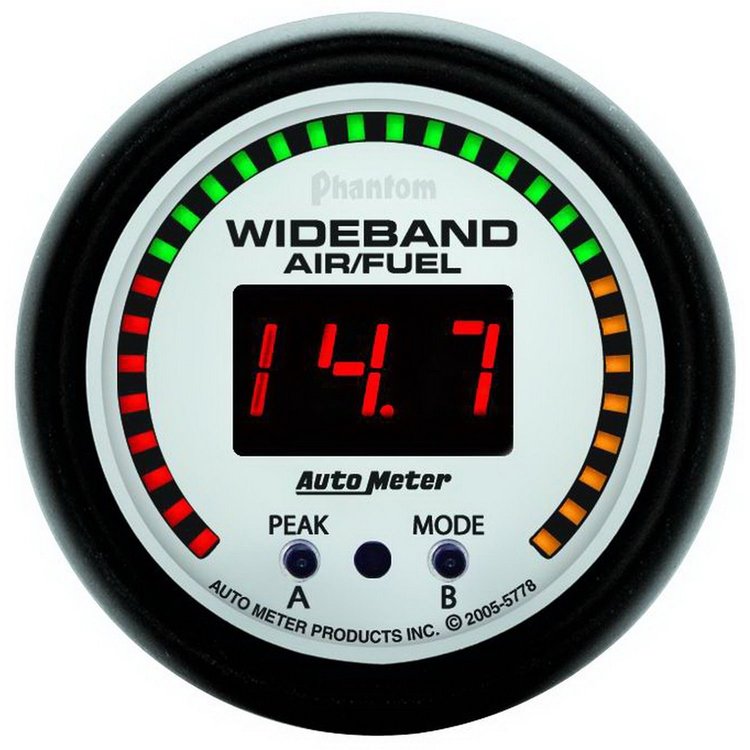

Phantom Wideband Air/Fuel Ratio Gauge 2-1/16" electrical
InfoVehicle Info Needed
AUTO METERPART NUMBER: 105-5778

Phantom Wideband Air/Fuel Ratio Gauge 2-1/16" electrical

$36699
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Wideband Air/Fuel Electrical Gauges
    Phantom Wideband Air/Fuel Ratio Gauge
  • 2-1/16" electrical
  • AFR or LAMBDA
  • Digital

    Notes:
  • LED digital display.
  • 0-4v data output feed for ECU, data acquisition unit, or Laptop tuning
  • Auto-Dimming gauge brightness feature
  • Includes custom tuned .1 AFR Resolution Bosch LSU4.2 Sensor
  • Display data in Lambda or numerical A/F ratio
  • User programmable range
  • Peak recall/memory
  • 10:1 to 20:1 AFR Range for Gasoline Applications
  • Adjustable for Alternate Fuel Types (Ethanol, Methanol, Propane, CNG)
  • 6:1 to 18:1 AFR Range for Alternate Fuel Types
  • User Programmable Warning Function
  • This product has no provision for dial illumination/backlighting.
  • Includes 8 ft. Wiring Harness.
  • Gauge kit includes custom tuned .1 AFR Resolution Bosch LSU4.2 Sensor, 8ft. wiring harness, 304 stainless steel weld-in bung, mounting hardware, and detailed instructions for installation
  • 0-4v data output feed for ECU, data acquisition unit, or Laptop tuning
  • User programmable range for Rich/Stoic/Lean conditions
  • Peak recall/memory
  • 10:1 to 20:1 AFR range for gasoline applications
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • User Programmable Warning Function
  • Display data in Lambda or numerical A/F ratio
  • Knowing the exact air/fuel mixture running through your engine is the most important factor to extracting the highest levels of performance and durability. Not all wideband gauges are created equal. AutoMeter utilizes an advanced calibration method that automatically calibrates your gauge on every startup to assure you of the highest degree of accuracy over the entire lifespan of your sensor (no free air calibration is ever necessary). Compatible with nearly all fuel types, the AutoMeter Pro Wideband has a configurable display to pinpoint the exact range you want to keep an eye on. An advanced peak recall function and lean warning system make sure you're safely making power, whether on the track or on the street. An automatically dimming display tailors light output for any condition. Data logging output is included for one wire or two wire systems in both lambda or AFR. Our specially designed O2 sensor and wiring harness are included for ease of installation. Quite simply, there isn't a more accurate or easy to live with wideband gauge available on the market.

Part TypeGauge
BrandAUTO METER
Package Height5.5
Package Width5.5
Package Length5.7
Weight1.47 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Gauge Size (Mm)52.40 diameter
Gauge Face ColorWhite
Bezel ColorBlack
ShapeRound
SweepDigital numeric
Size2.063 in (52.4 mm)
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)White
Bezel FinishBlack
Gauge Size (In.)2 1/16 diameter
Pointer ColorN/A
Gauge StyleAuto Meter Phantom II
Gauge Number ColorRed
Gauge SeriesDigital
Gauge RangeLean-rich
Oem ReplacementNo
Lighting TypeDigital LED
Part FitmentUniversal
Lighting ColorRed LCD/Red Yellow Green Segments
Gauge TypeAir/Fuel ratio
Sending UnitElectrical
Vendor Part Number5778
Package Qty1
Package TypeEA
