Vehicle Info NeededAUTO METERPART NUMBER: 105-4416

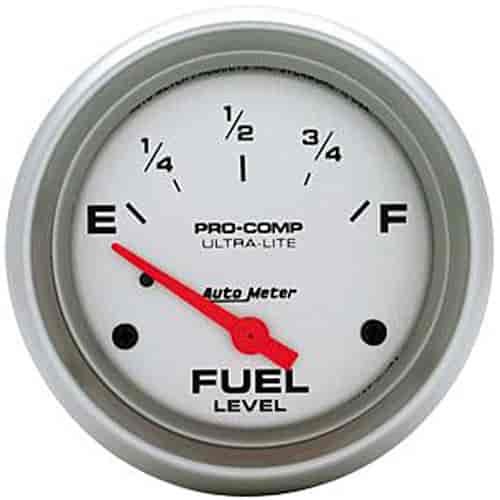

Ultra-Lite Fuel Level Gauge 2-5/8" electrical
$8799
3 left in stock
Ships Tomorrow
Lowest Price GuaranteeFuel Level Electrical Gauges
- Ultra-Lite Fuel Level Gauge
- 2-5/8" electrical
- 240-33 ohms
- Red Pointer For Quick Glance Monitoring
- Rugged Reliable Performance
- Precision Movement And Extreme Accuracy
- 1 Year Limited Warranty
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Works with 240E/33F ohm senders, including AutoMeter 3262
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60"s to mid 90"s), 0-30 ohm (early GM), 73-10 ohm (pre 90"s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Part TypeFuel Gauge
BrandAUTO METER
Package Height5.5
Package Width5.5
Package Length5.6
Weight0.61 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Gauge Size (Mm)67.00 diameter
Gauge Face ColorSilver
Bezel ColorBrushed Aluminum
Sweep90 degree sweep
Size2.625 in (66.7 mm)
Bezel FinishSilver
Gauge StyleAuto Meter Ultra-Lite
Gauge Number ColorBlack
Gauge RangeEmpty-full
Sender Ohm Range240 ohms empty, 33 ohms full
Lighting TypeIncandescent
Gauge TypeFuel Level
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)Silver
Gauge Size (In.)2 5/8 diameter
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number4416
Package Qty1
Package TypeEA
