Vehicle Info NeededAUTO METERPART NUMBER: 105-3234
#3 Braided Stainless Steel Hose, 3-Feet Long, 3/16" ID Fittings
$6299
1 left in stock
Ships Today
Lowest Price Guarantee- #3 Braided Stainless Steel Hose, 3-Feet Long, 3/16" ID Fittings
- For Mechanical Pressure Gauge
- Braided Stainless Steel Hose
- 3ft hose length
- PTFE lined hose, resistant to most fluids
- Type 304 Stainless braid
- Maximum Operating Pressure - 3000 PSI
- Burst Pressure - 12,000 PSI
- `-65 'F to 450 'F Operating Temperature Range
- Includes 1/8"NPT male to -3AN female straight, 1/8" FPT Female to -3AN Male straight, 1/8" NPT Female to 1/4" NPT male straight, and -3AN to 1/8" NPT female 90 degree fittings

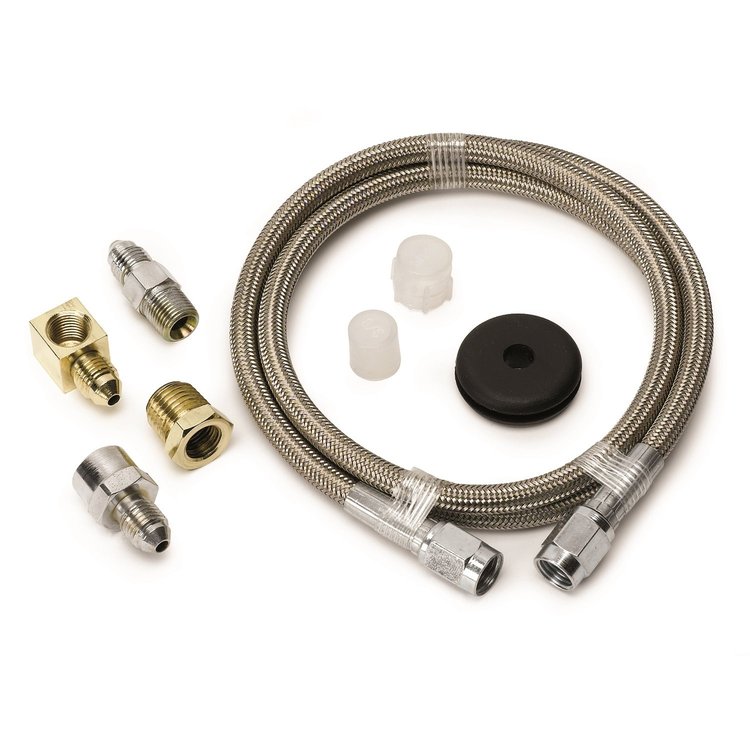

Includes 3ft. of #3 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -3AN male fitting, -3AN male to 1/8" NPT male fitting, -3AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.
Part TypeAN Hose
BrandAUTO METER
Package Height0.9
Package Width5.7
Package Length11.5
Weight0.38 PG
Part CategoryPerformance Parts
QuantitySold as a kit
Hose Length (Ft.)3
Hose End 2-3 AN
Hose FinishNatural
Hose End 1-3 AN
Hose End 2 AttachmentFemale threads
Supply Line TypeHose
Hose Length36 in (914.4 mm)
Hose End Fitting MaterialSteel
Fittings IncludedYes
Hose Size-3 AN
Hose End Fitting FinishZinc plated
Part FitmentUniversal
Hose MaterialBraided stainless steel
Hose End 1 AttachmentFemale threads
Vendor Part Number3234
Package Qty1
Package TypeEA
