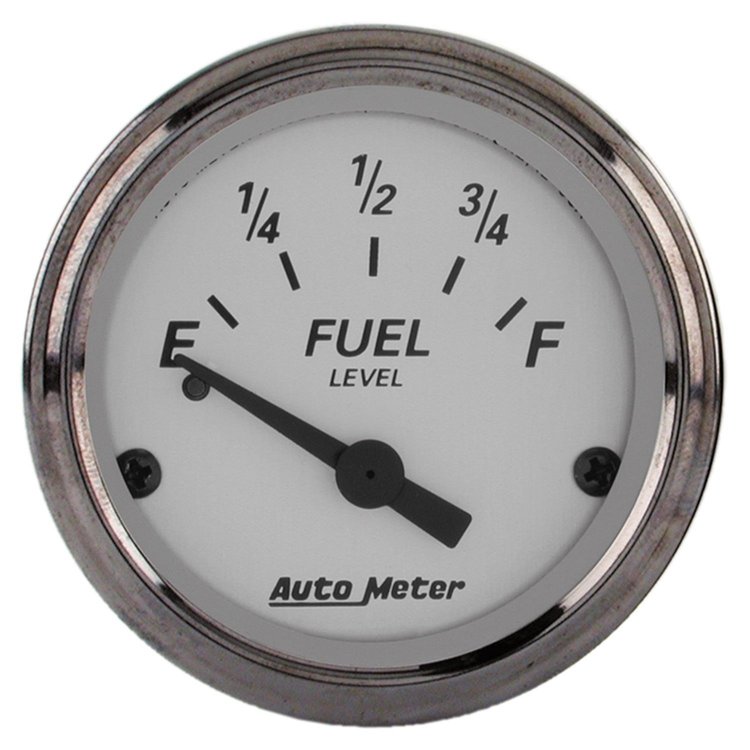

Vehicle Info NeededAmerican Platinum Fuel Level Gauge 2-1/16" Electrical
Size :
Ships on Sep 14, 2026
Lowest Price Guarantee- American Platinum Fuel Level Gauge
- 2-1/16'' Electrical
- 0-90 ohms (For most 1965-97 GM)
Will not work on some 1998-Up vehicles with 40-250 ohm senders - Traditional incandescent lighting illuminates around the perimeter of the dial
- Works with most 1965 to 1997 Chevrolet/GM senders
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60"s to mid 90"s), 0-30 ohm (early GM), 73-10 ohm (pre 90"s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Auto Meter American Platinum Gauges have vintage-style domed lenses, black accents, aluminum faces, and black nickel bezels. Air-core meter movement offers superior accuracy. Red & green bulb covers included to change lighting.
