Vehicle Info NeededAUTO METERPART NUMBER: 105-1424

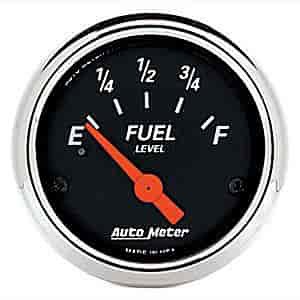

Designer Black Fuel Level Gauge 2-1/16" Electrical
$5759
Ships on Sep 04, 2026
Lowest Price GuaranteeFuel Level
- Designer Black Fuel Level Gauge
- 2-1/16'' Electrical
- 240-33 ohms (Universal)
For use with Fuel Sender #105-3262 - Traditional incandescent lighting illuminates around the perimeter of the dial
- Works with 240E/33F ohm senders, including AutoMeter 3262
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60"s to mid 90"s), 0-30 ohm (early GM), 73-10 ohm (pre 90"s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Part TypeFuel Gauge
BrandAUTO METER
Package Height4.6
Package Width4.6
Package Length4.9
Weight0.45 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Liquid-FilledNo
Gauge Size (Mm)52.40 diameter
Gauge Face ColorBlack
Bezel ColorChrome
Sweep90 degree sweep
Size2.063 in (52.4 mm)
Bezel StyleStreet Rod
QuantitySold individually
Dial (Face Color)Black
Bezel FinishBlack chrome
Gauge Size (In.)2 1/16 diameter
Pointer ColorFluorescent Red
Gauge StyleAuto Meter Designer Black
Gauge Number ColorWhite
Gauge SeriesAnalog
Gauge RangeEmpty-full
Sender Ohm Range240 ohms empty, 33 ohms full
Oem ReplacementNo
Lighting TypeIncandescent
Lighting ColorWhite Incandescent
Gauge TypeFuel Level
Sending UnitElectrical
Vendor Part Number1424
Package Qty1
Package TypeEA
