Vehicle Info NeededAUTO METERPART NUMBER: 105-1410

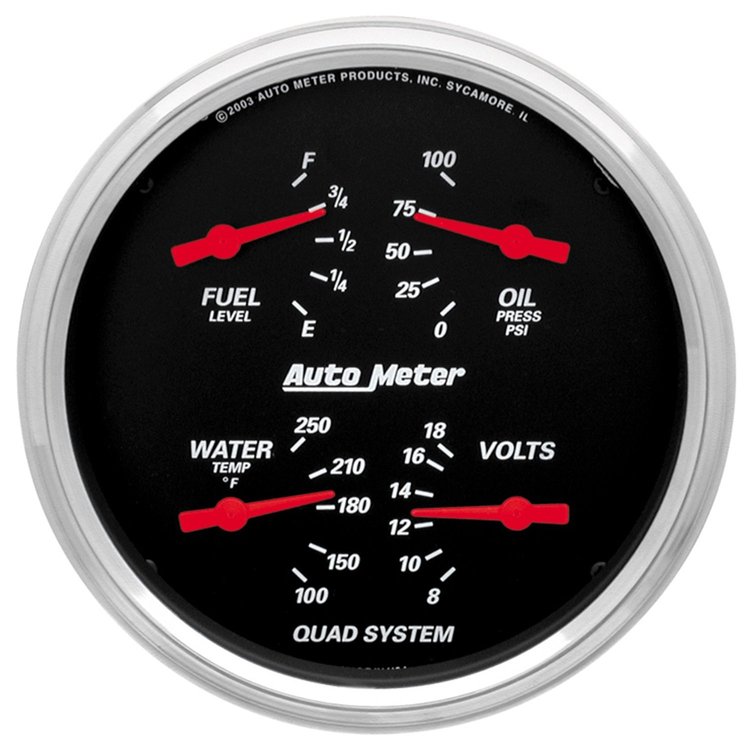

Designer Black Quad Gauge 5" Electrical
$22949
1 left in stock
Ships Today
Lowest Price Guarantee4-Gauge Kit
- Designer Black Quad Gauge
- 5" Electrical
- Fuel Level (240-33 ohms)
- Oil Pressure (0-100 psi)
- Water Temperature (100°-250° F)
- Voltmeter (8-18 volts)
Includes 1/8" NPT sender and 3/8", 1/4", and 1/2" NPT adapters/fittings - Traditional incandescent lighting illuminates around the perimeter of the dial
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- Gauge kit includes 1/8" NPT pressure sender, 1/4" NPT adapter, 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8" NPT temperature sender and a 1/8" NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter's 3262 fuel level sender).
Part TypeOil/Water/Volt/Fuel Gauge
BrandAUTO METER
Package Height5.5
Package Width6.5
Package Length6.5
Weight1.8 PG
Part CategoryPerformance Parts
Warning Lights IncludedNo
Gauge Face ColorBlack
Bezel ColorChrome
Size5 in (127 mm)
Fuel Pressure Gauge IncludedNo
Water Temperature Gauge IncludedYes
Clock IncludedNo
Brake Bias Gauge IncludedNo
Bezel FinishChrome
Boost Gauge IncludedNo
Ammeter Gauge IncludedNo
Mounting Bracket IncludedNo
Gauge StyleAuto Meter Designer Black
Gauge Number ColorWhite
Voltage Gauge IncludedYes
Oil Temperature Gauge IncludedNo
Transmission Temperature Gauge IncludedNo
Lighting TypeIncandescent
Bezel StyleStreet Rod
QuantitySold as a kit
Fuel Level Gauge IncludedYes
Dial (Face Color)Black
Pyrometer Gauge IncludedNo
Tachometer Gauge IncludedNo
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Speedometer Gauge IncludedNo
Oil Pressure Gauge IncludedYes
Part FitmentUniversal
Lighting ColorWhite Incandescent
Vendor Part Number1410
Package Qty1
Package TypeEA
