Vehicle Info NeededATIPART NUMBER: 085-205210

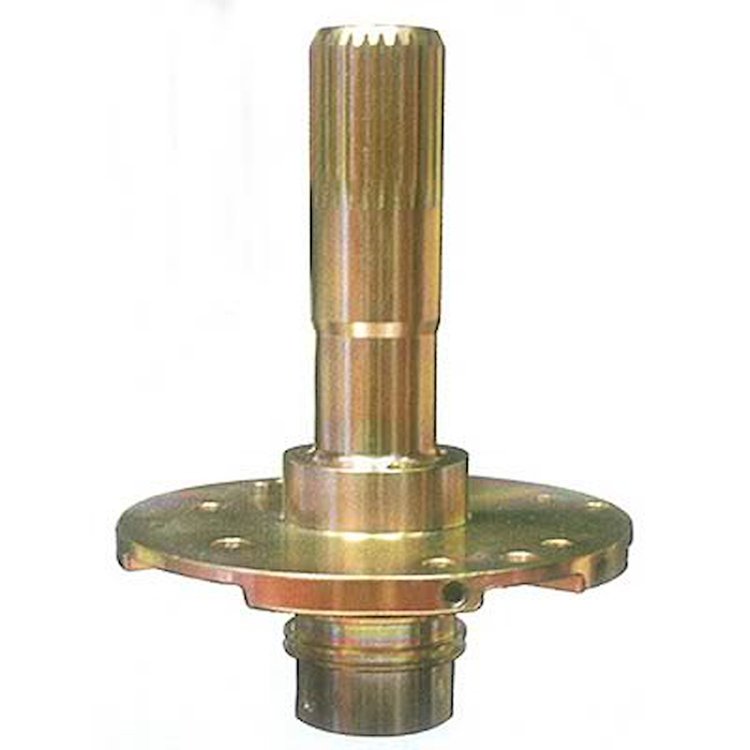

205210 Stator Support Tubes And Pump Halves, Heat Treated, 4140 - OEM Style "Press In"
$7339
Ships on Sep 03, 2026
Lowest Price Guarantee- Stator Support Tubes And Pump Halves
- Heat Treated
- 4140 - OEM Style "Press In"
ATI 205210 Features:
Stator Support Tubes support and center the stator inside the converter and lock the stator from turning when the converter is multiplying torque while the sprag is locked. The inside of the tube provides a surface for the oil rings on the input shaft to seal, preventing the oil from coming out of the converter and going directly into the transmission. The front ring on the input shaft seals and sends the oil through the pump to the cooler. The oil returns from the cooler to the hole between the rings into the input shaft and is then directed to cool and lube the clutches, bearings and gear set.
Part TypeAuto Trans Stator Shaft
BrandATI
Package Height1.75
Package Width1.85
Package Length7.35
Weight0.75 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number205210
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
